Asphalt Drum Mixing Plant Dhb/Mdhb Series China Asphalt Factory Customized

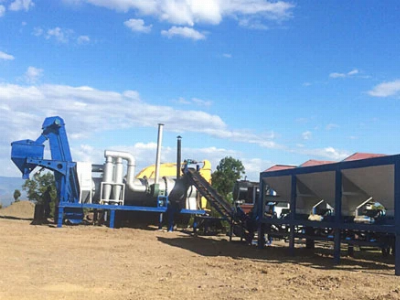

Asphalt Drum Mixing Plant DHB/MDHB Series China Asphalt Factory Customizedasphalt drum mixingAsphalt drum mixing plant mainly including: cold aggregate supply system, burner,drying and mixing drum, water dust catcher, bitumen supply system, electrical control system.Drum mixing type asphalt plant, to continously produce asphalt mixture.Burning system:I. Oil burner; II. Gas burner; III. Coal burner; IV. Oil&Gas dual purpose burnerMobile Type: MDHB series; Stationary Type: DHB seriesFeaturesCompact structure, less land occuption;Low initial investment, highly cost-effective;Convenient for transporation and mobilization;MDHB series equipped with mobile chassis can be directly pulled by truck or vehicle;Cold aggregate bins equiped with weight sensors and variable frequency motors;aggregate feeding rate is remote controlled, adjustable and precise;Drying drum have functions of drying, heating and mixing, low heat loss;optimized inner structure, fast heating and well mixing;Model Capacity(t/h) Weighing accuracy  Total Power(KW) Consumption(kg/t) Aggregate Bitumen Coal OilMDHB/DHB2020±1.5%±1%40105.5-7MDHB/DHB4040±1.5%±1%7510-135.5-7MDHB/DHB6060±1.5%±1%12810-135.5-7MDHB/DHB8080±1.5%±1%16510-135.5-7MDHB/DHB100100±1.5%±1%20010-135.5-7Main Structure: -Cold aggregate feeding system1.Aggregate feeding is controlled by frequency invert2.The side face of hoppers is equipped with fence to keep safety -Drum Dryer and Burner1.The drum dryer inclined angle: 3°2.Burner: Oil burner -Dust Filter System1.Hot Finished Products Bin -Middle screen and Inclined Belt1.The Middle screen can take away the aggregates which size is over 25 mm -Hot Finished Products Elevator1.Elevator is vertical bucket elevator2.Component: rack, plate chain lifting, hopper, tension device and shell3.Function: take the mixture into finished goods hopper -Control Room and Control System1.Weighing control system2.Control room:3000×2200×2500mm3.The Main electrical elements can be international brand or domestic brand -Bitumen Tank1.Capacity can be 30Ton or 40Ton bitumen tank which is suitable for transportation by sea/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
