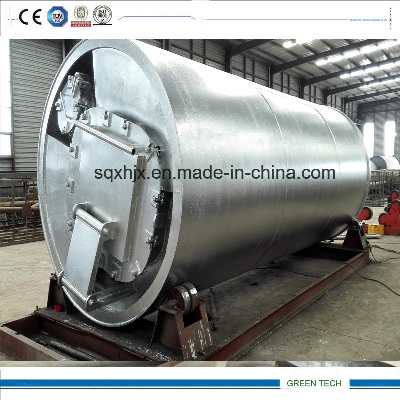

Oily Asphalt to Diesel Refining Plant by Pyrolysis and Distillation

1.Technical parametersNO.NameParameter1The raw materials:heavy sludge oil2Daily capacity:12 ton /day3The size of reactor (D*L)2800-6600  mm4Reactor materialQ345R5Average oil productivity:50 %,6Average carbon productivity:30%7Average whater productivity:10%-15%10pyrolysis time10 hours11Discharge time1.5 hour12.Feeding time3 hour13Cooling time3hours14Working pressureNormal /slightly negative15Power15 kw16FuelCoal. Wood, gas etc17Working area1000 square meters18Total weight28000kgs19Reactor rotate speed0.25-0.4/min20.NoiseNo more than 85 db21.TypeNEW TECH Pollution free22.CertificateCE,.ISO.2. Major parts :reactor with base and cover oil -gas separator heavy oil tanl cooling system light oil tank water sealing dedust system waste gas recycle system slag out device control board 3. Work flowloading plastic into reactor heating reactor after heating , solid plastic converted to oil gas oil gas go into oil-gas separator ,heavy oil deposit and go to heavy oil tank, light oil gas go to cooling system after cooling ,light oil gas change to liquid oil and go into light oil tank non-liquid oil gas will to water sealing tank, then back to combustor burning to heat reactor as fuel smoke produced by heating reactor will go to dedust system, after dedust system treatment , smoke change to white clean waster steam ,then go to sky through chimney. 4.plant features:1.)Environmental protection equipment: The complete set of unit produces    no smoke and no smell 2.) High efficiency and good performance: the output capacity of pure raw    is more than 80% . net oil yield over more than 40% 3. )The design of unit is reasonable and advanced :fatey and easy to use 7. Terms and Condition 1) Payment term: 30% TT advance payment 70%TT payment before plant shifting . 2) Delivery time: for batch type plant, loading plant within 20days after getting your advance payment, for fully continuous plant, loading plant within 50days 3) About installation: we will send technician for guiding installation and test machine  and training your workers for free. The Installation period is one months, buyers offer round tickets and accommodation for our technician. 4) Warranty: The whole set plant warranty period is one year (easy-ware parts except). The reactor warranty is 3 years. We will not be responsible for problems caused by personal  wrong operation 5.other choicePyrolysis plant(convert waste to fuel oil )TypeDaily capacityUsed forFinal Product and usageBatch type5Ton10ton12ton15tonWaste tyrePlasticRubberOil sludgeOily wasteOthersFuel oilUsed for heating boiler as furnace oil Or refined for distillation oilSemi-continuous type15Ton,20TonFully continuous type20ton30ton60tonSpecial type20Ton15ton  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
