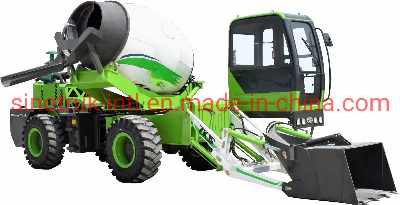

New China Manufacture Mini Concrete Mobile Mixer with Self Loading

·The main hydraulic components are all imported!·Save 5 labours at least every day.·Don't need electric concrete mixer, save electricity up to 100 degrees every day.·Don't need concrete mixer truck anymore!·Don't need wheel loader to load material anymore!·270 degrees discharge angle!Product DescriptionSELF LOADING CONCRETE MIXER ModelHDT2600AVehicle ParametersOverall Dimensions(L x W x H)7860x2750x4100Wheelbase(mm)2800Curb Weight(kg)7000kgDrive FromTorque converterMaximum Speed (km / h)30km/hMaximum Gradeability30°Minimum Turning Radius(mm)5300MMMinimum Ground Clearance(mm)380mmDiesel EngineModelYUCHAI DEUTZ 4102 Turbo-charged Rated Power78kwGearboxModelZL-280 Power Shift GearboxGearshift4 Forward +4 BackService Refill CapacitiesFuel Tank75litersTotal Hydraulic System Capacity75 litersOil16 litersParameters of Hydraulic systemReducerHJ80-43Dual Gear Pump50/32Motorcycloid 125Water supply system parametersTank Volume500LWater SupplyTime RelayMixing and UnloadingThe double-cone mixing drum has double-spiral mixing screws and convex bottom.Mixing Drum Geometrical Capacity3000L Drum Rotation Speed13rpm Concrete yield2.6m³/Batch,10m³/hourThe counterweight mounted on the heavy duty saddle can be hydraulically slewed at 270°and automatically locked by a hydraulic brake. The drum rotation is achieved by gear pump and cycloidal hydraulic motor in open circuit with a manual electric valve in the driver's cabin and in the rear of the mixer. The drum rises to horizontal position through two double-acting jacks.The unloading chute is tilted by a manually adjustable handle and can be rotated by 90°, but can not be synchronized with the tilting operation of mixing drum Removable chutes ensure unloading directly through the hopper. Two chute extensions are provided as standard.Detailed Photos  Packaging & ShippingProduction LineCompany Profile Our Advantages1) We are manufacturer and have more than 10 years professional exporting experience.2) 1 set truck or small truck parts order can be accepted.3) Many colors and accessories can be customized.4) The truck performance is adjustable according to your demand. More Products:Training and Service:Customers and friends from overseas:FAQ1: Payment: A:30% advance payment after signed the contract, 70% balance should be paid before delivery. We can accept T/T and L/C2. Delivery time: A:25-45 working days after payment is received. According to different trucks models3. How about your product quality? A: The products have passed the ISO, CCC, SGS, BV, and CONTECNA qualification certification. All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed. 4: How long is the warranty period?A:The warranty of our products is 1 year or 50000km, which comes first/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
