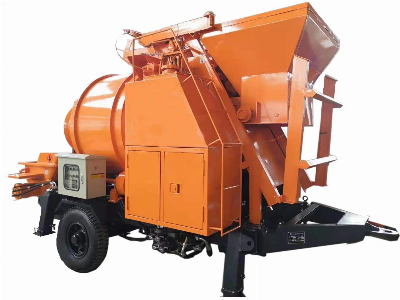

2023 Cpm30d Hot Sell Concrete Pump with Mixer

Mobile Concrete Mixing PumpThe CPM30D  Concrete Pump and Mixer mixing conveyer is equipped with agitation and transportation functions. The agitation system utilizes a self-fall type bi-pyramid to reverse discharging mechanism, while the hydraulic system employs a double cylinder piston type with electrical and hydraulic control. The S valve assignment form enhances efficiency and performance.Main PartsThe main engine consists of the hydraulic system, electric system, pump system, mixing mechanism, distributing valve, running gear, cowling, rack, and transfer pipeline.The hydraulic system includes the main oil route system, distributing valve oil system, and mixing oil system.The main oil route system comprises an oil filter, ram pump, electromagnetism distributing valve, electromagnetism overflow valve, check valve, main oil cylinder, and pipeline appendix.The distributing valve oil system includes an oil filter, electromagnetism distributing valve, oil cylinder, and pipeline appendix.The electric system consists of the electromotor, AC contact device, air switch, and push-button switch.AdvantagesThis equipment offers stability, simple control, convenience, low maintenance, and easy movement.FeaturesIt is suitable for high-rise construction, remote mortar transfer, foaming concretes, and small aggregate concretes, making construction work easier. It has high transportation efficiency and can reach areas inaccessible to other equipment. The flow of mortar in the pipeline does not cause environmental pollution.By incorporating a compressed air injection gear, it can function as a complete wet concretes jet aircraft, suitable for mine pit work, understructure support and protection lining work, wall surface spray coating, construction structure reinforcement, ground side slope stability, and tunnel excavation. It offers high work efficiency, good concretes quality, low dust loading, low snapping back rate, low failure rate, and low building cost.ItemUnitSpecificaitonMax. Actual Outputm3/h15Max.Theoretical Outputm3/h30Max.Outlet PressureMpa10Distribution Valve Type S Tube ValveConcrete Clinder Sizemmφ160×1000Main Oil Cylindermmφ110/1000Oil Tank CapacityL200Inner Dia.of Delivery Pipemmφ125Power 45kwMax. Dia of Aggregatesmm40Towing Speedkm/h≤8Max.Horizontal Distancem200Max.Vertical Distancem40Mixer ModelRDCM350 Unmixed CapacityL560LMixed CapacityL350LDrum CapacityL2210Drum Thicknessmm5Drum Speedrpm15Hopper Lifters6Loading Hopper Mechanical Hoist HopperMixing Times45~60Overall Sizemm5300×2090×3600Weightkg4000/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
