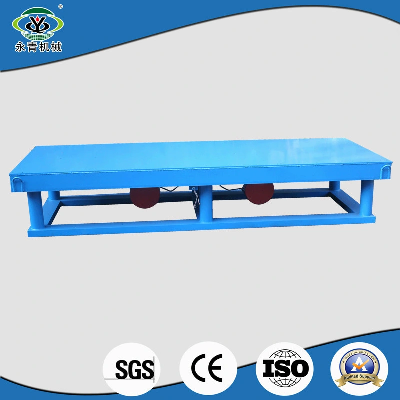

High Frequency Concrete Vibrating Table Design

Brief introduction1. ZDP vibrating table is also called vibrating platform. Mainly used for material consolidation, air and cracks reduction within material, which makes processing materials more tighter, solider during cast consolidation. Such as lost foam casting, concrete casting and so on.2. Widely used in metallurgy, casting, foodstuff, chemistry, construction fields and so on.3. Used for transforming the granule, powders from bulk to block, from shape to form.4. Different types of vibrating tables are available according to the production characteristics.Structure1.Concrete vibration table mainly consists of bottom brackets, upper platform, vibrating motor.2. Three dimensional vibrating motion: a. horizontal b. vertical. c. up to down.3. Spring: Steel spring, rubber spring, Composite spring.4. Motor quantity should be even number, such as 2, 4, 6, 8 Main Parameter       ZDP Vibrating TableModelTable Size(mm)Power(kw)Amplitude (mm)Max Loading Weight        (kg)ZDP-500500*5002*0.252-5300ZDP-800800*5002*0.25400ZDP-10001000*10002*0.4600ZDP-12001200*12002*31200ZDP-15001500*15002*32000ZDP-30003000*30006*1.53000Details Horizontal Vibrating Motor:* The vibrating motor is vibrating source.   Low noise and consumption, and easy to maintain.* Three dimensional vibrating motion: a. horizontal b.vertical. c.un to down.* Motor quantity should be even number, such as 2, 4, 6, 8…Rubber Spring: This kind of spring is sturdy and makes low noise.Package & CertificatePacking:Outer packing is plywood case, which is up to the international standard. Inner packing is moisture-proof and water-proof membrane.  All of packages are wrapped by 0.5mm steel belt to further strengthen, which can ensure machine safe during shipping.Shipment: 5 working days after receiving your deposit.Service:1. Special design offered.2.Buyer label paste offered.3.Sample testing support.                              4.View our Factory  5.One year warranty.6. Three years extended warranty.          7. 24 hours inquiry and consulting support.  8. Training how to instal and use the machine.Required inquiry information for a suitable model1. The table size?2. The height?3. The max loading you require?4. The voltage you use?5. Additional parts ,like the mobil wheel, frequency converter, etc.We promise, all of your information (Tel, email, etc.) will be not published without permission. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
