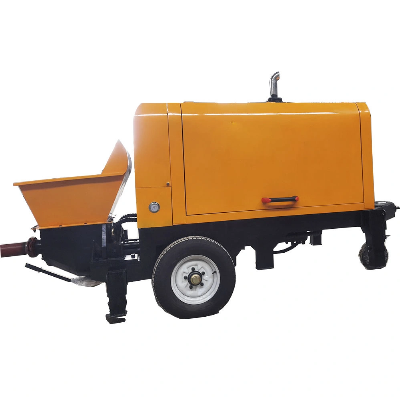

Low Price Hbts-20 Diesel High Efficiency Factory Direct Concrete Pump

Introduction of Low Price Hbts-20 Diesel High Efficiency Factory Direct Concrete Pump(1) The particle size of sand and gravel, the grade of cement and the mixing ratio should meet the requirements of the mechanical performance of the pump according to the requirements of the factory manual.(2) The parking brake and locking brake of the pumping equipment should be used at the same time, the tires should be wedged tightly, the water supply should be normal, the water tank should be filled with clean water, there should be no debris in the hopper, and each lubrication point should be lubricated normally.(3) All bolts of pumping equipment should be tightened, pipe joints should be tightened and sealed, and protective devices should be complete and reliable.zmwm13Parameters of Low Price Hbts-20 Diesel High Efficiency Factory Direct Concrete PumpMaximum Theoretical Concrete Delivery Volume 15m³/hMaximum Pumping Concrete Pressure 10MPaDistribution Valve Form S-pipe valveConcrete Conveying Cylinder Bore*Stroke Φ140*650mmOutlet Diameter Φ100mmRated Power 4100Rated Speed 1280r/minHydraulic Circuit Form open circuitPumping Xiyong Oil Pressure 18MPaOil Pressure Of Stirring System 8MPaHydraulic Tank Volume 200LMaximum Conveying Vertical Distance 120mMaximum Conveying Horizontal Distance 250mMaximum Particles Allowed 30mmDimensions L*W/*H 3400*1100*1700mmTotal Mass 1500KGPhotos of Low Price Hbts-20 Diesel High Efficiency Factory Direct Concrete Pump /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
