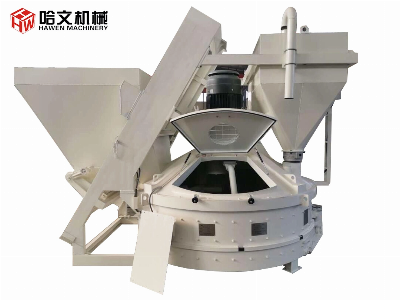

Planetary Mixing Machine for Block Production

                                                       Description of  Planetary Concrete Mixer  Planetary Concrete mixer is widely used in the filed of Concrete block factory,ready-mixed concrete batching plant,dry mortar,wet mortar. It has the feature of compact structure,smooth transmission,easy operation and maintenance,excellent performance.    MP Series Planetary Mixer/Vertical Mixer in the workshop Technical Specification for  Planetary Concrete Mixer Planetary Concrete Mixer Technical Data   ItemUnit MP330MP500MP750MP1000MP1500Rated Feeding Volume L500750112515002250Rated discharging Volume L33050075010001500Feeding quantitykg 8001200180024003600Mixing power kw1518.5303755Discharging power kw 2.22.22.233Side ScraperNr11111 Discharge scraperNr11111Weight (T)kg19002900420055006500Technical data may change due to technical improvement,subject to modification without notice.Design Feature of Planetary Mixer Gearing systemGearing system consists of motor and hardened surface gear,equipped with elastic coupling or hydraulic couple between the motor and reducer. The newly improved gearbox with lower nosie,longer torque and more durable. Even in strict production conditions,the gearbox can distribute power effectively and evenly to each mix and device,ensuring normal operation,high stability and low maintenance of concrete mixer.Mixing device Compulsory mixing is realized by composite moves of extruding and overturn driven by rotating planets and blades. Mixing blades are designed in parallelogram structure,which cn be turned 180degree for reuse according to the customer to increase the service life.Specialized discharge scraper has been designed according to discharge speed in order to increase the productivity.Discharge deviceThe discharging door can be opened by pneumatic or hydraulic,the number of discharging door max at three,and special sealing device on the discharging door  ensure the firm sealing and reliable control. Hoisting DeviceThe feeding door of concrete mixer will be opended automaticly when discharging,and closed when the skip hoist hopper is descend.This device effectively prevent the dust flow during the mixing to relaize the environment protection.Maintenance door and security deviceFor the sake of safety, high reliable and sensitivity sensor are being installed in the access door,to ensure the safety and convenience during maintenance. Planetary Concrete Mixer erected up in workshop before shipment to Customer   Container loading of Planetary Mixer to Customers Overseas  Planetary Concrete Mixer application at site  Factory workshopOur Service  Pre-sale service supportAccording to every customer's demand and budget, we offer the professional  factory set up solution, factory layout design, process flow design. More importantly, we welcome every customer to visit our factory and visit our customer site before placing the order   On-sale service supportAssist clients to finish the factory planning,like foundation construction, power preparation,water pool preparation,etc. Before delivery equipment to customers, complete debugging and checking,our machine will do hot testing in workshop with material. Provide a full instruction manual for the block making machine. Provide technical guidance for the installation , including installation advice and electrical connection.  After-sale service supportSend technicians to installation site for the guidance, equipment commissioning and training. Provide high-quality spare parts thoughout the year, and the maintenance technicians are always ready to provide technical help.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
