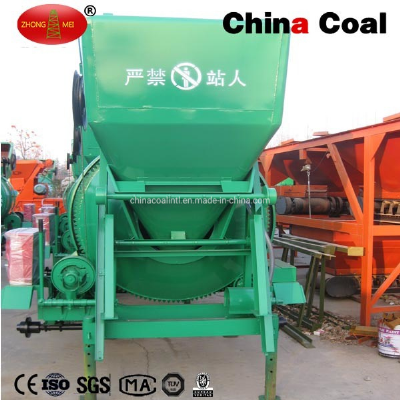

0 Jzc350 Gear Drive Tipping Bucket Loadingconcrete Mixer

Introduction of JZC350 concrete mixer Usage and characteristics:This machine is used for mixing plastic and low fluidity concrete, JZC350 type 0.35m3 (refer to each concrete mixing after tamping, a product) JZC350 type is 12-14m3/h, suitable for small and medium construction, roads, bridges, water conservancy and concrete plant.This machine is a double cone reversed discharging gravity type concrete mixer, the mixing tube is converted to stir reversal to the material, has the advantages of simple and reliable structure, good mixing quality, high production efficiency, light weight, convenient maintenance operation, is the more advanced type concrete mixer.Main Parameter of JZC350 concrete mixer Model: ring gear transmission tipping bucket materialFeeding form: manual feedingRoller drive mode: ring gearDischarge capacity L: 350Feed capacity L: 560Productivity m3 / h: 14Mixing motor model: Y132S-4Stirring motor power KW: 5.5Stirring motor speed r / min: 1440Water pump motor model: 40DWB20-8APump motor power KW: 0.55Pump motor speed r / min: 2880Mixing cylinder speed r / min: 14.5Maximum drag speed (km / h): 20Aggregate maximum particle size (gravel / pebble) mm: 60Mixing time S: 35-45Dimensions (working state) mm: 2810 * 2240 * 3070Shipping size mm (container): 2550 × 2230 × 2150Weight kg: 1300Figure Images of JZC350 concrete mixer /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
