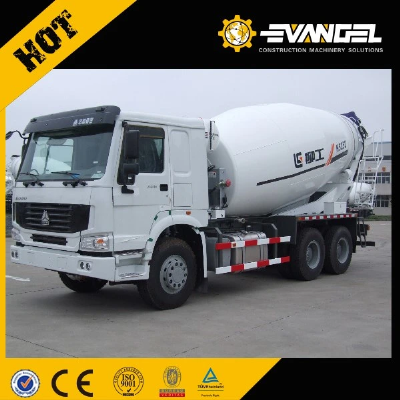

Liugong Concrete Mixer 9 Cbm HOWO Chassis

Liugong Concrete Mixer 9 cbm HOWO chassis 1.247 KW engine, 6*4 driving type 2. Drum loading capacity: 9 m3 CHASSIS Chassis Model ZZ1257N3847C Emission Stage China III Engine Power 247KW Engine Displacement 9.726L Driving Type 6× 4 Wheelbase 3825+1350 mm Max. Running Speed 90km/h Min. Turning Radius 19 m Brake type Air pressure of double loop Truck loading capacity 11670 kgs DRUM Drum material Baosteel B520JJ Drum volume 14.6 m³ Drum loading capacity 9 m³ Drum agitating volume 5m³ Material charge speed ≥ 3 Material discharge speed ≥ 2.7 Material discharge control Manual Drum remnant ratio of discharging ≤ 0.5 Drum rotating speed 0-18 (r/min) Drum tilt angle 13° HYDRAULIC SYSTEM Hydraulic pump USA Sauer Hydraulic pump type USA Sauer Hydraulic motor USA Sauer Speed reducer USA Sauer Hydraulic circuit type closed circuit cycle Hydraulic tank capacity 20L Water tank capacity 450 L Water supply type Air pressure The imported engine with original packing has strong power, and can meet the requirements of high-efficient work. - Precise matching design with advanced energy conservation control can reduce the oil consumption of the machine. - Low emission meets the Europe II standard. - The adoption of new cooling fan and large-scale silencer lowers the noise of the machine. - The adoption of the advanced turbocharging technique increases the highland adaptability of the machine. - Automatic preheating system improves the working capacity in the low temperature. - Unique fan cover with the shape of hopper opening greatly improves the air supply of the engine and the radiating capacity of the system, guaranteeing the successive high-efficient work of the machine. - Restart prevention system effectively avoids the misoperation, and improve the use security of the machine.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
