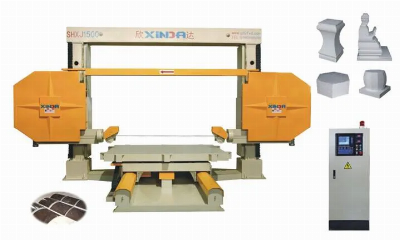

SHXJ 1500 Five Axis CNC Diamond stone Wire Saw Machine

Function:The machine is mainly used for processing the profile of marble and granite. it not only can process the arc slabs of different specifications, solid columns, hollow columns, large stone lines and English letter but also can process stone into polygon and the figure of Buddha,special-shaped square column and so on for special-shaped stone.Brief introduction of SHXJ1500 wire saw machine:1.The machine has steady structure, including top beam,two upright column,square box,hydraulic station tensioning unit,two big flywheel. Left side install a driven big flywheel and hydraulic station tensioning unit.  tensioning device controls diamond wire tension or loosen, meanwhile keep the diamond wire pressure. Right side install a driving flywheel and main motor, it can control the speed of wire  between 0-40m/s via inverter. the machine can cut different kind of stone material.     2.   This machine is controlled by four axis linkage CNC system. Machine lifting and trolley movement are controlled by servo system. Guide wheel rotating adopt step system.3. Operator can write program and enter cutting parameter in the cnc control panel. If there are any complex graphics, can draw graphics by AutoCAD and save as DXF format. the cnc system can read the DXF files and automatically make the program when put the U disk to the USB interface of cnc system.4. Trolley move by Screw rod. Screw rod is soaked with oil in the protective cover of screw rod(Patent product).                             5. The machine will stop automatically and display failures on the screen if wire broken.                                 6.the machine has a water spray system. if no water or not enough water,the machine will automatically stop.  Technical parameters:ParametersSHXJ1500(five axis)Diameter of WireΦ8-Φ11Length of Wire16500mmSpeed of Wire0-40m/sWorktable Size3000×2000mmWorktable Whether RevolveYESWorktable Load Capacity50TRange of Cutter Movement1600mmMax Cutting Size(L×W×H)3000×2000×1500mmProduction Efficiency1-2m²/h(marble)    0.5-2m²/h(granite)Main Motor Power11KWWater Consumption3m³/hourOverall Dimension7500×5700×4300mmDiameter of Guide Wheel Φ200mmTotal Power21.79KWTotal Weight10TSchematic Drawing:Electric Cabinet& Operation Panel Photos :Exhibition:FAQS:1) Payment:30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before loading the machine to container2) Delivery time:The wire saw machine can be shipped within 15 weekdays when received down payment.3) Guarantee period:The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty. 4)How about our service?1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time. 2. Technical Support 24 hour on line.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
