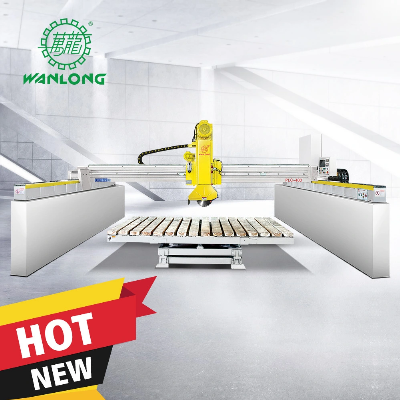

Bridge Saw for Stone Factory

Product DescriptionPLC-400/600/700  Laser Bridge Cutting MachineThe machine is for slab processing, which adopts PLC Control System, Imported Frequency converter, Precise Signing Laser etc for automatic function and guarantee its precise and stable cutting.Technical ParametersModelUnitPLC-400PLC-600PLC-700Max. diameter of bladesmm400 600 700Main motor powerKW151518.5Table dimensionmm3200x20003200x20003200x2000Table tilting degreen°858585Table rotating degreen°90/36090/36090/360Overall dimensions(L x W x H)mm6000x4800x28006000x4800x28006000x5500x3360Maximum cutting sizeKg3200x2000x80 3200x2000x180 3200x2000x230  Configuration1. SIEMENS main motor with stronger seats.2. PANASONIC PLC and inverter.3. Positioning device, laser etc.4. Strong cast iron HT200.5. Touch sensitive Panel Easy for worker to operate.6. 380-400sqm/ 10hrs for medium hard granite with 10-20mm thicknes. Feature- Guide rail is oil impregnated and protected from water and dust- Vertical movement of machine head is driven by hydraulic system, and the stroke is adjustable- Horizontal movement of the crossbeam is driven by SIEMENS motor equipped with OMRON rotary encoder by which the precision is guaranteed- Worktable can tilt 0-85°, and rotate 0-360°CONTACTWanlong GroupWe are a leading stone machinery and diamond toolds manufacturer and exporter with a monthly turnover of 5 million US dollars. Our products are rigorously tested not only in our own laboratory to ensure the best performance, but also proved by our 2100 clients from 108 countries. Our Diamond tools and stone machinery are available for all types of natural stones, including granite, marble, limestone, sandstone, travertine, etc.Diamond tools:Wanlong's mission is to make no stone hard to cut in the world, to help customer save production costs. More than 10 years in the line of diamond tools industry, Wanlong's technological innovation improves the cutting efficiency, and save the cost for end-users.Stone Industry: Wanlong developed Aluminum Plastic Laminated Panel, Honeycomb Laminated Panel, Ceramic Thin Marble Panel, Fiberglass Thin Granite Panel, Fire Proof Thin Granite Panel and other new stone products. Not only save stone (3-5mm super thin stone, the original 1-3cm reduced to 3-5mm), but also let stone products have properties (impact resistance, high-temperature resistant, fire resistant, light weight, large single size 140x280cm ), expanding the application of the stone (high-rise building interior wall decoration, airplane and yacht interiors).Machinery: Wanlong mechanical's mission is to provide customers with advanced technology solutions for efficient tools production. 18 years' practical experience in stone machinery industry contributes to rich experience and Technological advantage of diamond tools. Wanlong machinery will fit the needs of customers with more sophisticated services to fulfill the mission.For more information, pls contact with us or visit our website: wanlonggroup.en.made-in-china.com ./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
