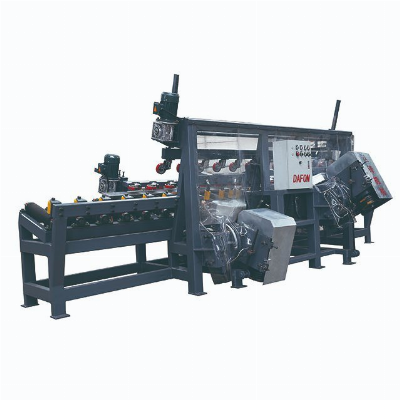

Dafon High Quality Roadside Stone Chamfering and Edging Machine

Product DescriptionRoadside stone chamfering and edging machine1. Mechanical part: The main frame of the machine is welded with a square tube. It is driven by a chain drum, a cylinder flap mechanism, and the motor main box is driven by a screw rod, which can accurately adjust the cutting angle and size. The motor directly drives the blade to cut, and the water retaining plate is made of stainless steel. The front and rear shelves are equipped with tilting rollers to facilitate loading and unloading.2. Electrical part: electrical operating system is simple and practical, motor stepless speed regulation, flat button switch, high waterproof type travel switch, two main motors 11KW-6P, total power 22.75KW.3. One 400MM saw blade is attached to the motor spindle.  Features:The bridge cutting machine is mainly for granite and marble, it adopts multidisc and PLC programmable control and man-machine interface, combined with a super-precision rotary encoder for slicing, uses a frequency converter to control left-right feeding, and adjusts the speed according to the stone material. It adopts a hydraulic lifting system and forward-backward slicing adopts high-precision screw nut driving, automatic slicing, and main spare parts adopt imported good-quality materials. The block can be placed on the ground directly, saving the cost of trolley and maintenance. It is especially suitable for cutting high-value granite and marble block because of its high-efficiency cutting rate, high precision slicing, flatness, stability, and easy operation.   Technical ParametersDaily output:11KW+11KWtotal motor power22.75kwbeam size500*600*7500mmblade size1600-2500mmmax vertical stroke1100mmmax processing length4000mmmax processing width2200mmwater consumption8.5m³/hmachine size and weight7800*4500*6500mm, 12TWe provide customization products please contact our sales with detailed requirements, and we will manufacture machines accordingly:Special customization size:1.Crossbeam length: 6500-10500mm2.Side beam length:4500-8000mm Machine Details  Blade: two ways of blade combination1. Big-medium-small combination2. Big-small combinationCan be customized according to the actual needs of customers   Production Process  1. Customer needs to prepare two sides foundation first with the drawing provided by us2. Install machine and blades3. Machine cut4. Take down the slab from blocks one by one, we can make a mold to support the slab, the machine can cut directly to the end and the slab will not fall apart5. Trolley is optional according to customers' requirement  Company Profile Quanzhou Dafon Machinery Co., Ltd., located in Shuitou Town, is a professional stone machinery enterprise integrating design, manufacturing, and sales. Mainly produce curbstone assembly line equipment, Infrared bridge cutter, automatic edge cutting machine, Infrared middle bridge cutter, single arm block cutter, bridge block cutter, mining machine, and other types of stone machinery.    Our Exhibition  After Sales ServiceWe provide skilled and rich experience technicians for installation and after-sale service.Pre-Sales Service* Inquiry and consulting support.* Configure the best machine line according to customer condition* View our Factory.After-Sales Service * Training how to install the machine, training how to use the machine.* Engineers available to service machinery overseas.* Lifetime technology maintenance in free and spare parts supply.    Related Products  Packaging & ShippingThe machine will be consolidated tightly and safely within the container and delivered by sea or railway, we offer fast delivery and prompt reaction.FAQ:  Q: How do I install and operate the machine, after receiving it?A: For simple machines, we will provide sufficient installation, operation, and maintenance instructions, and videos, which will make the whole thing as simple as possible for users. For high-tech machines, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future. Q: Manufacturer ProfilesA: We are the Top 10 stone cutting machine manufacturer with ISO & CE certificates since 1985. Q: We own 70% China market share in the special shape stone cutting machine series.A: We are a company which is especially for producing stone machines for exporting. Q: Quality ControlA: We have our own experienced QC. Our machine will be strictly inspected. We will provide a Testing Video for each machine before shipping out if required by the customer. Q: Delivery timeA: Based on order quantity, normally three weeks against payment. Hot Tags: bridge block cutting machine for granite, China, manufacturers, suppliers, factory, price, buy discount   Related Products/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
