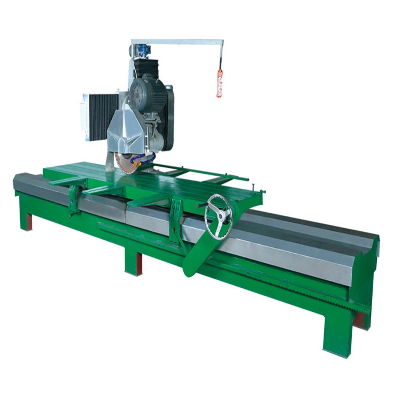

DFSY-600 is Manual edge stone cutting machine for granite marble slabsMachine Features1. The manual edge cutting machine is compact equipment for granite and marble edge cutting.2. The worktable movement is driven by manually winding the handwheel with a transmission mechanism of gear, rack, and chains.3. Worktable rails are oil-immersed and covered to protect from water and dust. High-quality bearings are used in the worktable wheels to ensure the worktable be light to drive by hand.4. The worktable is made of cast iron to avoid shape deformation. Grooves on the worktable make it easy to set modes for different size stone edge cutting.5. Blade position is adjustable both in the vertical and horizontal direction to fit for stone edge cutting. Blade lifting/lowering movement is motorized.6. Cutting head (blade) can tilt 45 degrees to do the chamfering cutting.7. A lubricant inputting small hole is opened on the blade spindle housing box. It is easy to lubricate the blade spindle bearings, so the blade can run smooth and work long.Technical parameters: Max.diameter of blade600mmMax.vertical stroke350mmWorktable size3000*750mmMax.process size2700*1100/1200mmWater consumption1.8m3/hMain motor power15/18.5kwGross motor power16/20kwDimension5500*2200*2250mmWeight2800kg After Sales Service:We provide skilled and rich experience technician for installation and after-sale service.Packaging & Shipping:The machine will be consolidated tighly and safely within container and deliver by sea or railway, we offer fast delivery and prompt react. FAQ:Q: How do I install and operate the machine, after receiving it?A: For simple machine, we will provide sufficient installation, operation and maintenance instruction and videos, which will make the whole thing as simple as possible for users. For high-tech machine, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future.Q: Are you manufacturer or trading company?A: We are manufacturer that has our own factory, technical Dept., marketing and after sale service teams.Q: What is your advantage?A: Firstly we are manufacturer, you could get best price without paying any commission. Secondly, we provide advisory machinery, debugging, maintenance and fault handling package of services. Thirdly, we offer customized overall solutions and one stop service. Both of our machine and diamond tools are excellent. Fourthly, we give you technology support on not only machine, but also diamond tools. Finally, better and lower cost after-sale service could be provided thanks to our worldwide network.Q: When can you ship my order?A: Normally 15-20days after advanced payment is received. The exact delivery date will be advised after order is confirmed. We will try our best to deliver soonest, if you need them urgently.Stone Fair Show: /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
