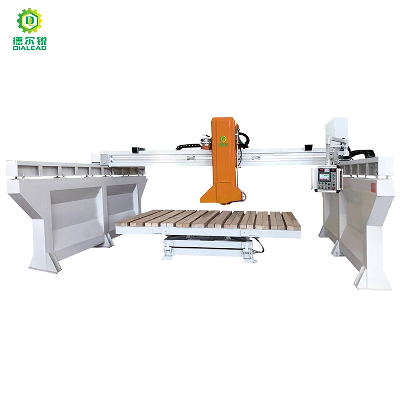

Dialead Automatic Infrared Bridge Stone Cutting Machine Sample Customization

Product DescriptionDIALEAD is the top stone machine and stone tools manufacturer in China with a history of more than 20 years.Dialead stone Machinery Infrared Bridge Saw Laser Stone Tile Cutter CNC Cutting Machine for Marble, Granite, Quartz Kitchen Countertop Making adpots microcomputer control, touchable operation pannel which helps operate the machine very easily. It can be used to cut slabs into different shapes like rectangle, octagon, arc and perfect circle etc. 1. Mechanical part: The cross beam is cast as a whole with a length of 4.8 meters. The beam cover is a windproof organ cover. The side beam is 4.5 meters long. All beams are designed with wide oil grooves. The main engine has four solid chrome-plated guide columns for lifting. The four guide columns are protected with wear-resistant guide bushes of ductile cast iron. The four guide columns are all oil-immersed and lubricated, so waterproof, dust-proof, and durable. High-strength screw is adopted to connect the whole machine. The main shaft box adopts first-level belt speed change, the bearing adopts ball rolling bearing, the side beam transmission adopts screw nut transmission, and the position of the side beam motor reducer adopts waterproof offset setting. The worktable can be rotated 360 degree in the horizontal plane, with a positioning angle of 45 degree and can be tilted 85 degree. 2. Electrical part: wall-mounted electric control box, PLC computer operating system, LCD touch screen with Chinese and English operation interface, wireless remote control, famous switch buttons, Japan's OMRON relays and encoders, high waterproof limit switch. Main motor 15/18.5/22KW-6P, total power 24.5/26/26KW. 3. Hydraulic part: double hydraulic lift of main engine, solenoid valve, double-layer thickened high-pressure oil pipe. 4. The diameter of the spindle is 50MM, the diameter of the blade holder is 300M. One blade can be hung. Chuck diameter 30MM. Technical DataAll technical data can be customized to meet your specific needs. ParameterUnitDLQSQ-450DLQSQ- 600DLQSQ-800Blade Diametermm300~450350~600500~800Max Cutting Sizemm3200*2000*1003200*2000*1703200*2000*270Workingtable Sizemm3200*20003200*20003200*2000Workingtable Tilting Angle°0~85°0~85°0~85°workingtable Rotating Angle°0~90°0~90°0~90°Main Powerkw1518.522Water Consumptionm³/h333Machine Details Packaging & ShippingCompany ProfileQuanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include five-axis bridge cutting machine, four-axis bridge cutting machine, stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry. Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China. With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc. Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.  CertificationsExhibition FAQ /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
