Pnematic Hand Held Bit Regrinding Machine for Button Reuse

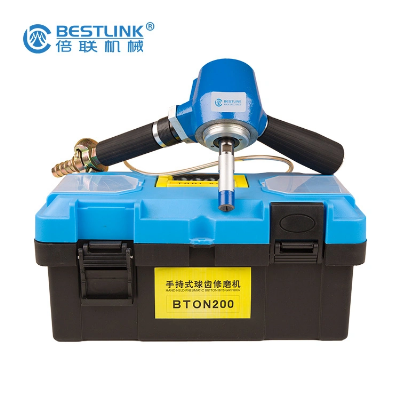

Pnematic Hand Held Bit Regrinding Machine for Button reuseWith over 20 years of experience in the field of drilling tools, including making button bit grinding tools, Xiamen Bestlink Factory Co.,Ltd. is one of the most professional and reliable manufacturer you are looking for in China.1. Button Bits Grinding MachineBTON200 Handheld button bit grinder is a high power, pneumatic tool for drill button bit, including tapered button bits, thread button bit, DTH hammer bit. Which is protable and easy operate to do the grinding work. Our Air Grinders require a clean and dry air supply of 100 psi and 80 cfm passing through an in-line oiler to supply lubrication to the grinder.And there's option for bits support car with recycling water pump and cart.Specification:Air pressure, max5-7 bar (100psi)Air consumption2m3/min (50ft3/min) Rate power1.5kwIdling speed20,000 rpmWater flushing presuure, max4 bar (60psi)Hose diameter, air19 mm(1/2″)Hose diameter, water6 mm Weight, exclude hoses3.2 kgSound level92 dB (A)Grinding button sizeΦ6-25 mmAdvantage of BESTLINK Button Bits Grinder:1). Easy operation-----it's easy to operate.2). Low air consumption-----allows grinding at lower compressed air. Fuel saving.3). Quick chuck-----it's suitable for difference type of grinding cups.4). Protable-----Light weight, hand held type.2. Grinding pinsThrough changing the quick chuck, the operator can use different types of grinding cup(as called grinding pin) on this button drill bits grinding machine, such as:a.the cups with WING drive(8mm shank)b.Sandvik's san-drive grinding cup with 9mm shankc.Atlas Copco's 55-drive grinding cupd.the cups from CME with hex-drive.  For bit's button shapeFor bit's button size (mm)spherical buttons / ballistic buttons6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25bit's body steel removal7-8 9-10 11-12 13-14 15-16 17-18 19-20Packing and ShippingThe button bits grinding cups will be packing into plastic box, easy to carry, and diamond grinding pins/cups can be packaged by carton, or wooden case, or according to the client's special request. Timely shipment can be made upon our negotiation.Further type of Drilling Bits Grinding machine:Bestlink factory also provide automatic type, robot arm type, eletric type of button bits grinding machine, and chisel bits/ integral rods grinding machine.FAQ:The information you may like to know before order: 1. Methods of Payment    T/T (Telegraphic Transfer) or Western Union or L/C at sight.2. Delivery Time    Based on order quantity, normally it takes 25 days for production.    Only 2 or 3 days if we have stock on your request model and size.3. Shipping way    Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air    Bulk order: we suggest by air or by sea.4. Quality Control    We have our own experienced QC.    There will be strict inspection and testing for every order before shipping out.5. After Services:  1) Our sales team will response for your question within 24 hours (Holidays Excluded)  2) Technical Support will be available in any time./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
