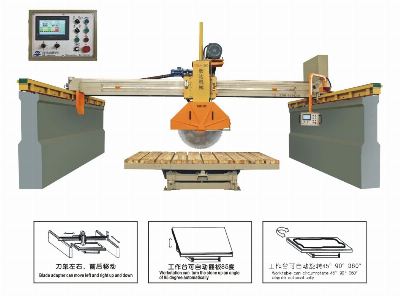

The infrared Bridge cutting machine is separate structure, need to build concrete foundation. The machine adopts the infrared for tool setting and the magnetic grid ruler for measuring the distance, use hydraulic unit to transmit, is controlled by PLC. The machine is mainly used for cutting marble and granite slabs, especially suitable for cutting the high value slab.The bridge cutting machine consists of crossbeam, spindle box, lifting components, worktable parts, PLC control system, hydraulic system ,infrared ray unit and automatic lubrication system.Feature:1, Crossbeam is made of cast iron, it will be more durable and stable.2,Worktable can rotate 0-360°and locate every 45 degree,can tilt 0°-83°3,Hydraulic system is used in the worktable tilting and rotating.4,AC contactor ,inverter,breaker,touch screen and PLC adopt Schneider brand. human-machine interface is easily operated and fully automatic processing as operator entered parameters5,Equipped with infrared ray to exactly locate slabs 6,The forward and backward movement of crossbeam is equipped with magnetic grid ruler to ensure high processing precision. 7,This machine has an automatic lubrication system. Can set time to oil for the blade lifting parts Working principle:The crossbeam was fixed on two parallel concrete foundations. The crossbeam move forward or backward by asynchronous motor, it is controlled by frequency converter(its stroke:2.3meters). The spindle is driven by main motor with belt transmission and then have the blade rotated. The blade component move left or right by asynchronous motor with frequency converter for adjusting feed speed(its stroke:3.5meters) Worktable can rotate 0°-360°and locate every 45° by hydraulic system transmission.Technical parameters:ParametersXDQJ1200Blade DiameterΦ600-Φ1200Worktable Size3200×2000mmMax Transverse and Longitudinal Cutting Distance3200mmMaximum Travel Of The Cutter Lifting750mmWorktable Tile Angle0-83°Cutting Thickness0-450mmMain Motor Power22KWWater Consumption4m³/hourOverall Dimension7300×5000×5000mmTotal Power27.9KWTotal Weight6.5TSchematic Drawing:Electric Cabinet& Operation Panel Photos : Exhibition:FAQS:1) Payment:30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment2) Delivery time:The machine can be shipped within 15 weekdays when received down payment.3) Guarantee period:The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty. 4)How about our service?1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time. 2. Technical Support 24 hour on line. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
