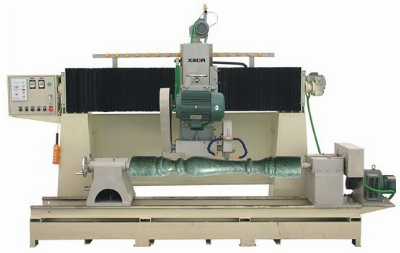

XYJ-1500 (II) Baluster Stone Cutting Machine

Function: this machine is used for processing baluster(vase)  Brief introduction:1,this machine is controlled by PLC system. AC contactor and breaker adopt Schneider brand. Inverter adopt Toshiba brand.2,Cutter head moves left and right by screw rod transmission,is controled by inverter.3, Cutter head goes up and down by screw rod transmission,is controled by inverter.4,worktable is driven by  motor with belt transmission. Revolving speed can be adjusted by inverter according to the hardness of the stone.5,This machine takes advantage of Optical Fiber Amplifier to receive the signal copying the shape of template you want to process.Technical parameters:ParametersXYJ-1500(II)Blade diameterΦ400mm  Max cutting sizeSingle:Φ350X1500mm  Double:Φ200X1500mmWater Consumption4m³/hourOverall Dimension3200mm×1300mm×2500mmMain motor power7.5KWTotal Power10.5KWTotal Weight1.4TElectric Cabinet Photos : Exhibition:FAQS:1) Payment:30% of total value (down payment)for placing an order, we start to produce the machine→70% (balance payment)before shipment2) Delivery time:This machine can be shipped within 15 weekdays when received down payment.3) Guarantee period:The machine is guaranteed for one year. The man-made accident and the Lightning , Flood ,earthquake , wrong voltage are not covered by the warranty. 4)How about our service?1.Six engineers are special for installation service for oversea customer. If customer needs our installation service,we are available to dispatch any time. 2. Technical Support 24 hour on line.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
