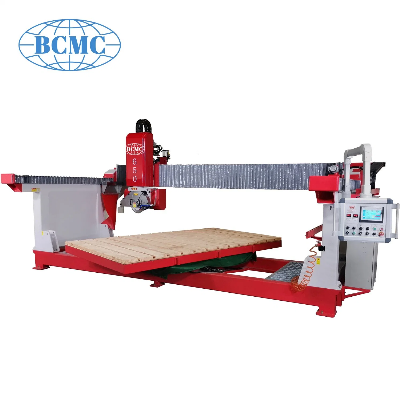

Bcmc Bcsq-650 Siemens PLC Control System Automatic Bridge Stone Cutting Machine

BCMC Machinery BCSQ-650 automatic stone bridge saw is a mainly used for granite, marble cutting, with many advantages such as rational construction, steady movement, high accuracy, convenient installation and maintenance. Compared with similar products, the advantages are obvious. It is a very important and common equipment in stone processing equipment.Parameter:TECHNICAL DATA BCSQ-650ConfigurationDiameter of saw blademmΦ400 - Φ650Dimension of working platformmm3300 x 2000Power of main motorkw15  Power of cutter frame reciprocating motor  kw  1.1  Power of crossbeam shifting motor  kw  1.5  Power of hydrulic station  kw  2.2  Power of lifiting motor  mm  1.5Main Performance ParametersMax. length of horizontal cuttingmm3300Water consumptionm3/h 4 Measurement  Water consumption  m³/h  2Gross weightkg5800Dimension (L x W x H)cm 5750*3600*3400 Main Features:1) Monoblock structure for easy move, installation and no foundation needed.2) Siemens, Schnider electric and other high quality accesories such as Hiwin linear guide are adopted.3) 0°, 90°, 180° and 270° automtaic head rotatation and blade positioning. 4) Blade can tilt automatically 45° for chamfering cutting, or tilt 90° for milling.5) Automatic cross cutting repeatedly so easy by pushing one-button.6) Speed can be adjusted according to the stone material cutted.6) Automatic or manual working mode is optional.7) Worktable can rotate 0-360°, pause at every 45° automatically or lock at any degree by remote control. 8) Worktable can tilt 0-85°, easy for slab loading.Detailed Information For Spare Parts:Control SystemUse advanced PLC control system with touch screen to achieve multi programming methods, including manual programming or PC processing operation for powerful functions, which offer friendly and inteligent control.Linear GuideQuality linear guide used on crossbeam and carling for high precision of cutting and long lifespan.Electric CabinetQuality electrics used to ensure stable performance.Laser Reticule ApparatusLaser checking and calibration instrument to aid in lining up the cut at the beginning of processing.Remote controller(optional)Easy controlling the movement in 3 axes in distance convenientlyHydraulic Giant (optional)For cleaning the machine and keep it tidy.  Optional Function - Straight ProfillingApplication: * 3D decorative wall panels * Countertops * Doorsteps, staircases and thresholds * Fireplaces * Flooring * Funerary art/tombstone * Street furniture * Ventilated facades/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
