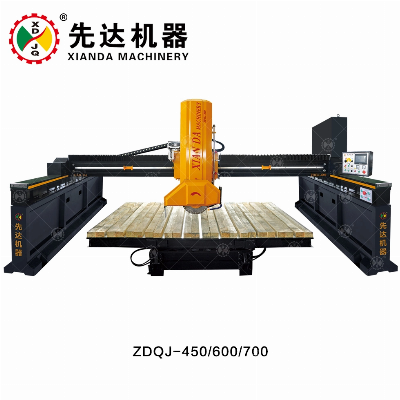

Bridge Saw Machine

 ZDQJ-400-600-700, adopting PLC system and Human-machine interface, togethering with ultra-high precision rotary encoder positioning and infrared device, with Chinese & English double operation language, using inverter to control left-right feeding,adjusting the speed according to stone material, using hydraulic lifting system which equipted through 4 guide post, also this machine provide the unique side beam protection device, main spare parts adopt imported high-quality materials. Thus the whole machine is featured with high cutting efficiency, high cutting precision, high stability, easy-operation, specially high value granite and  big size marble.  ParameterITEM NO.ZDQJ-450ZDQJ-600ZDQJ-700Blade diameter  Φ300-Φ450mm  Φ350-Φ600mm  Φ350-Φ700mmMax processing size3200X2000X120mm3200X2000X180mm3200X2000X230mmDimension of worktable  3200X2000mm3200X2000mm3200X2000mmWorktable tilting degree   0-85° 0-85° 0-85°Worktable rotating degree0-90°/0-360°0-90°/0-360°0-90°/0-360°Main Motor15kw18.5kw18.5kwGross Motor21kw24kw24kwWater consuption4m³/h4m³/h4m³/hOutline dimension5800X4700X2900mm5800X4700X3100mm5800X4700X3200mmGross weight5500kgs5750kgs6000kgsVoltage380V/50HZ/3PHZ Product Show Factory Overviews Certifications Our Services We can provide Machine Testing Video and will be strict inspected and testing for every machines before shipping out.32 years' Manufacture Experience.Special shape stone cutting machine more than 70% market occupied in China.Top 5 stone cutting machine manufacturer with ISO&CE certificate.Products are selling to more than 20 countries, with more than 10 years overseas experience.Use of top brands to ensure high quality.We can provide competitive price and discount for large quantity.Strength supply capacity ,more 1000 sets per year.After-sales service 24 hour on line. We will service staff training, so that continuously improve the overall quality of service. We are responsible for receiving and processing customers on product quality and service quality complaints; We have professional and technical personnel to guide the installation and commissioning of your machine and operator training.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
