Double End Grinding Test Testing Machine (SCM-200)

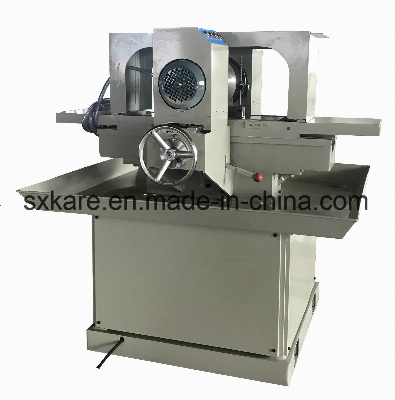

SCM-200 Double End Grinding Testing MachineThe SCM-200 Double End Grinding Testing Machine is used for milling the double ends of the specimen after cutting and making the high precision specimen. There are C200 diamond milling wheels fixed on the both motion milling heads. Fix the specimen on the work table. To and fro when operating. The milling head could be used automatically, or by manual forward to grinding. The automatic forward speed is adjustable.  Grinding range≤150×150×150mmMilling wheel specificationC200×C32×40mmGrinding motion head power1.1kW×2Error≤0.05mmSample accuracywithin 100mm of depth of parallelism, planeness, verticalityOutline dimension1400×1350×1200mmWeight600Kg  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
