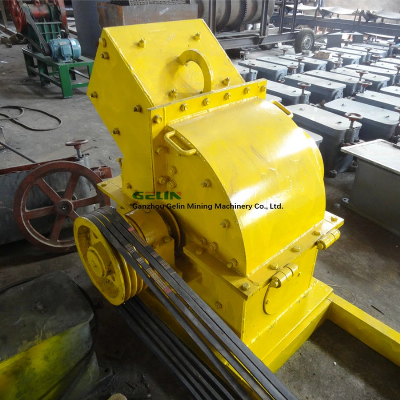

High Performance Limestone Gold Ore Powder Grinding Mill Hammer Crusher

  Product DescriptionHammer Crusher is one of the main crushing equipment to crush limestone, coal or brittle materials of below medium hardness in industrial departments such as metallurgy, building material, chemical, as well as water and electricity.  It has characteristics including big crushing ratio, high production capacity, uniform particle size of crushed products etc.Features1. The enhancement rotor is designed with finite element analysis technology.2. High crushing ratio. The crushing ratio ranges from 10 to 25 or even higher to 50.3. The AMC alloy hammerhead enjoys a service life increased by 50~150%.4. The theory of stone hitting effectively reduces the wear load of hammerhead and grid plate.5. The high strength artillery steel spindle is designed with vacuum duplex which increases the strength by 3-4 times.Product ParametersModelFeeding Mouth Size(mm)Discharge Size(mm)Capacity(m³/h)Motor power(kw)Weight(ton)Dimension L*W*H(mm)PC 400*300≤200≤255-10110.8900*670*860PC 600*400≤250≤3010-22222.261200*1050*1200PC 800*600≤250≤3518-40554.81310*1180*1310PC 1000*800≤350≤3525-50755.91600*1390*1575PC 1000*1000≤350≤3530-5590141800*1590*1775PC 1250*1250≤350≤3535-65132322060*1600*1890PC 1400*1400≤350≤3550-10028037.52365*1870*2220PC 1600*1600≤350≤35100-1504801103050*2850*2800Structure and Working Principle1.Upper Body2.Grate Plate3.Hammer Disc4.Output Port5.Hammer6.Side Plate7.Lower Body8.Stand9.Motor10.Transmission Axle11.Hammer Axle12.Liner at Feeding Mouth13.LinerWorking Principle:When the materials get into the crushers, they crumble after impacted by the rapidly rotating hammer; the crumbled materials then gain kinetic energy from the hammer and run towards the baffle and grate bar at a high speed; at the same time, the materials crash into each other and are crumbled for many times; materials which are narrower than the gap between grate bars get out from the gap while larger materials crumble after impacted, grinded, and extruded once again on the grate bar before they are squeezed out from the gap by the hammer, so as to get products of needed particle size.Detailed PhotosApplicationPackaging & ShippingCompany ProfileGanzhou Gelin Mining Machinery Co., Ltd is an over 30 years professional manufacturer and exporter of mining machinery for crushing, screening, grinding, flotation, magnetic/gravity separation etc. in China.the machines are excellent for processing gold,diamond,iron ore, ilmenite, manganese ore etc. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin's equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile,South Africa,Zambia etc. Sincerely welcome to visit our factory.Customer VisitingOur ServicesOne Stop solution for beneficiation plant service: 1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.   2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.   4.Manufacturing the necessary equipments and arrange the shipment.   5.Complete services for Installation and commissioning and technical training(operating training,common problem solving training).   After-sale Service Regularly visit customers to provide after- sale technical supports and to solve problems of beneficiation plant. For equipments supplied,we could provide one-year warranty and provide spare parts with preferential price in the long term and be responsible for any problems with the them.FAQQ: Are you a trading company or a factory?A:We are a factory at Shicheng county with 110 workers,6 workshops covered 17,000m2 and office covered 2,500m2. Welcome to visit our factory at anytime.   Q:What is your payment terms? A: By TT(Telegraphic Transfer), 100% or 40% Deposit before production and 60% balance payment paid off before loading from factory.Q:How long is the guarantee period of your products? A: The guarantee period is 1-2 years, pls ask staff for more details. And we will supply lifelong technical support service and the spare parts at lowest cost.   Q:Is it possible to produce customized products ? A: Yes, most of our products are produced as required.   Q: Is it possible to provide sample for your factory to do ore-dressing experiment? A: Yes, engineering consulting is available and we'd like to arrange mineral beneficiation experiment after received your sample and provide the test report./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.matc
