Horizontal Stone Drilling Machine Stone Mining

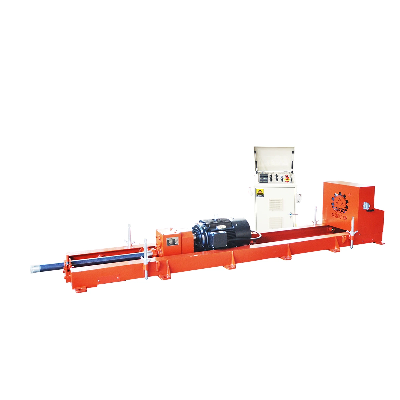

ZY-100DTH-PE PNEUMATIC&ELECTRICAL DTH DRILLING MACHINEThe DTH drilling machine is used for drilling large diameter horizontal ,vertical and slant holes during stone quarrying.It is necessary assistive equipment to wire saw machine during stone quarrying,The machine is controlled jointly by electric motor and compressed air motor.And the pneumatic units are high quality standard.The machine has the following features:low compressed-air consumption,high drilling efficiency,light in weight,easy operating and installing,etc.The particular screwing and discharging mechanism of the tube device reduces the intensity of labor.And the machine has particular design for guiding drilling.ZY-100DTH-PE PNEUMATIC& ELECTRICAL DEPTHDRILLIING MACHINEMODELUNITZY-100DTH-PEDRIVING SYSTEMKW4.0KW ELECTRIC MOTOR1.5KW AIR MOTORDIAMETER OF DRILL HOLE(MM)Φ90MAX.DEPTH OF DRILL HOLE(M)30SPEED OF DRILLING(M/H)6-8MIN.AIR PRESSURE(Mpa)0.6-0.7AIR CONSUMPTION(M³/MIN)7-9SINGLE FEEDING DISTANCE(M)1DRILLING DIRECTION ANY DIRECTIONNET WEIGHT(KG)600       /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
