Sales Quarrying Stone Bq90-P DTH Drilling Machine

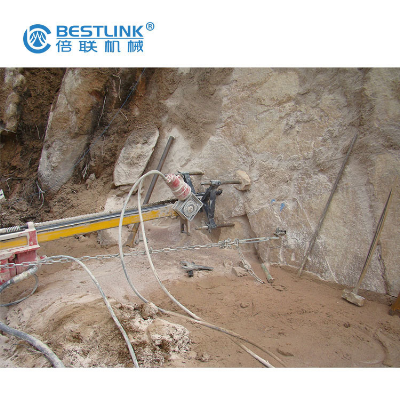

Sales Quarrying Stone Bq90-P DTH Drilling MachineBQ-90P DTH driller is a new model drill machine, we develop it specially used for stone quarry and the drilled hole can be different diameter, depth, multi-orientation & angle. Now it's the indispensable products for mine quarrying, stone dynamiting and diamond wire passing.   Advantages:1) Light weight, easy installation and transportation 2) The high quality pneumatic components ensure the low energy and air consumption and high efficiency 3) The good hoisting ability 4) The particular mechanical tube devices for screwing and discharging to reduce the labor intensity 5) The particular design for guiding drilling   Technical Data:NameBQ-90P Pneumatic drillerMax. depth of drilling35-40mDiameter of drillingΦ65-90mmDrilling speed6~8m/hMinimum air pressure0.5-0.7MPaTotal compressed air consumption7~9m³/minThe hole hammerCIR65-90Track travel1.2mAdvance devicepneumatic motor, reducer, chainThe pneumatic rotation headpneumatic motor, reducerDrilling directionany directionAdjust height of the down jack220mmPneumatic control panelremote control, manual change directionTotal weight250Kg Detailes pictures of DTH Driller BQ90 Pneumatic type:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
