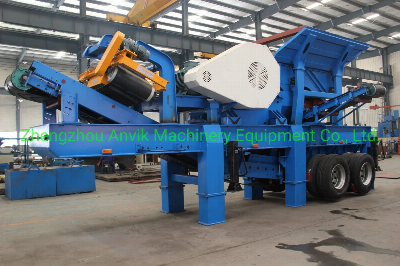

Portable Crushing Plant/Semi-Mobile Crusher/Wheel-Mounted Mobile Crushing Plant

ApplicationMobile crushing plant is widely applied in metallurgy, chemical, building materials, hydropower industries where the working sites need moving from one place to another, especially in dealing with aggregates for highway, railway, and hydropower project. Customers can choose different configurations according to their specific requirements.Advantages1. Easy transportation, lower cost and wide application;2. Short assembly time, flexible combination, and convenient installation;3. Compact structure design and excellent crushing performance;4. Space-saving and lower operation cost.Technical Specification  ModelVibrating feederJaw crusherBelt conveyorChassis frameCapacity (t/h)Overall dimensions (l*w*h)(mm)AM724J46GZT0724PE400×600B650×8MBi-axis15-6010500×2800×3700AM938J57ZSW380X95PE500×750B650×8MBi-axis40-10013000×2900×4100AM938J69ZSW380X95PE600×900B800×8MBi-axis60-14013200×2900×4600AM1149J710ZSW490X110PE750×1060B1000×8MTri-axis90-23015000×2900×5700AM1349J912ZSW490X130PE900×1200B1200×8MFour-axis150-35017000×3100×5800  ModelVibrating screenCone crusherBelt conveyorChassis frameCapacity (t/h)Overall dimensions (l*w*h)(mm)AM1235Y9003YA1235PYB900B650×7MBi-axis50-9013700×2800×5700AM2160Y12003YA1848PYB1200B800×7MBi-axis110-20015200×3500×6450AM1848S363YA1548PSGB0918B650×7MBi-axis80-12013700×3150×5700AM1860S513YA2160PSGB1321B1000×8MTri-axis130-22015200×3150×6400  ModelVibrating screenImpact crusherBelt conveyorChassis frameCapacity (t/h)Overall dimensions (l*w*h)(mm)AM1235F10073YA1235PF1007B650×7MBi-axis15-6010800×2480×5170AM1548F10103YA1548PF1010B650×7MBi-axis50-9012700×2800×5700AM1848F12103YA1848PF1210B650×7MBi-axis70-13013500×3150×6000AM1860F12143YA1860PF1214B800×8MBi-axis90-18015500×3150×6400AM2160F13153YA2160PF1315B1000×8MTri-axis120-25016200×3500×6700AM2460F13153YA2460PF1320B1400×8MFour-axis160-35016200×3500×6700Photo at Our Client's Quarry  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
