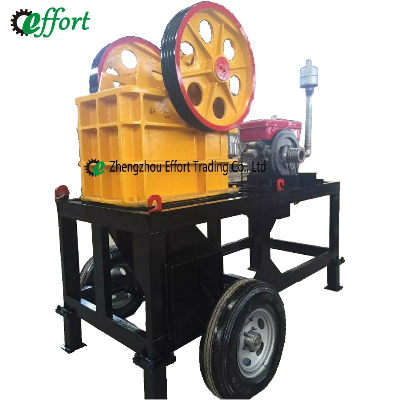

Finely Produced Small Diesel Jaw Crusher, Jaw Crusher Plant

Finely Produced Small Diesel Jaw Crusher, Jaw Crusher PlantJaw crusher Description:Jaw crusher is made up by the dynamic and static jaw plates composed of two crushing chamber to simulate the movement of animals to complete two jaw crusher crushing materials, special equipment for gravel.The production of jaw crushers has the characteristics of large breaking ratio, uniform product size, simple structure, reliable operation, easy maintenance, low operating costs and so on.Jaw crusher Application:1. Jaw crusher is mainly used for metallurgy, mining, chemical, cement, construction, refractory materials and ceramic industries as well as broken and finely various kinds of hard with rocks and ores.2. This series crusher gravel crushing equipment best suited to the compressive strength is not higher than 300MPa (M Pa) of various hard and soft ore was broken material shall be not greater than the largest block of technical parameters the law.Working Principle of jaw crusher:Jaw crusher (alligator crusher)work for the squeeze-type dynamic song, the working principle is: motor drive belt and pulley, through the eccentric shaft to move up and down movement jaw, when moving jaw rise cubits board with move between the jaw Angle change, so as to promote dynamic jaw plate to fixed jaw plate close to, and at the same time the material being crushed or broken split, to break (crusher price) purpose; When the jaws move downward, cubits plate and dynamic jaw Angle decrescent, move jaw plate in bars, spring, the function of leave fixed jaw plate, this time the already broken material from crushing cavity from your mouth. With the motor turns continuously and broken motor jaw as the periodic motion and discharge material crushed, and realize the batch production.Technical data of jaw crusher:ModelFeed opening size(mm)Max Feedsize(mm)Adjustingrange of discharge opening (mm)Capacity (t/h)Rotation speed of eccentric shaft (r/min)Motor power (kw)Total weight (t)Dimensions(L*W*H)(mm)PE-150×250150×25012510-401-32505.50.8720×660×850PE-200×300200×30018015-502-62607.51.2910×750×990PE-200×350200×35018018-703-10260111.51000×870×990PE-250×400250×40021020-605-20300152.81300×1090×1270PE-400×600400×60034040-10016-602753071730×1730×1630PE-500×750500×75042550-10040-11027555121980×2080×1870PE-600×750600×750500150-20080-2402755515.82070×2000×1920PE-600×900II600×90050065-16050-18025055172190×2206×2300PE-750×1060750×106063080-140110-320250110292660×2430×2800PE-800×1060800×1060640130-190130-33025011029.82710×2430×2800PE-830×1060830×1060650160-220150-33625011030.72740×2430×2800PE-870×1060870×1060660200-260190-33625011031.52810×2430×2800PE-900×1060900×1060685230-290230-390250110332870×2420×2940PE-900×1200900×120075095-165220-450200110523380×2870×3330PE-1000×12001000×1200850195-265315-500200110553480×2876×3330PE-1200×15001200×15001020150-350400-800180160100.94200×3300×3500PE-1500×18001500×18001200220-350500-10001802801225160×3660×4248PE-1800×21001800×21001500300-400600-1200160400150.66210×4013×4716PEX-150×750150×75012018-488-25320153.81200×1530×1060PEX-250×750250×75021025-6013-35330305.51380×1750×1540PEX-250×1000250×100021025-6016-523303071560×1950×1390PEX-250×1200250×120021025-6020-61330379.72140×1660×1500PEX-300×1300300×130025020-9016-1053005515.62720×1950×1600Thanks so much for you taking time to browse our products. Any further questions, please feel free to contact us and we are ready to so service for you!  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
