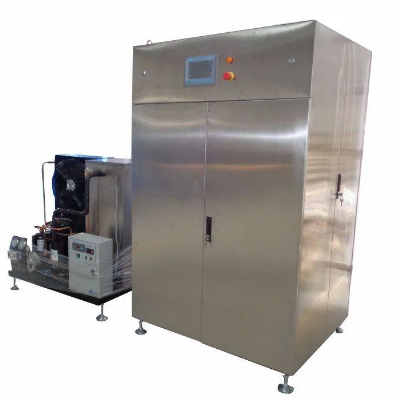

CE Approval 250kg/H Chocolate Tempering Machine

Chocolate Tempering MachineProduct DescriptionGusu QT Series Chocolate Tempering Machines are the perfect preliminary step for molding and enrobing (coating) processes. Specially designed to provide the pure cocoa butter in the chocolate with the appropriate crystal structure, it facilitates subsequent processing and ensures structural stability after the solidification and packaging stages.DetailsThe feeding pump set up in front of the chocolate tempering machine feeds the chocolate paste into the thermostat unit, which is equipped with revolving plates mounted on a main shaft driven by main shaft motor. These plates are housed in independent stainless steel double-jacketed compartments, through which circulates chilled water that must be supplied in a controlled, constant stream. A very thin layer of chocolate is provided to circulate between the plates and the compartment. Since the Chocolate Tempering Machine is divided into different zones and the temperature of each zone is controlled exhaustively, the cold is transferred quickly to chocolate, causing Beta crystals to form and the chocolate to become tempered. Same product circulation provides chocolate to molding or enrobing unit, while unused chocolate returns back to a previous storage tank.Technical ParametersModelCapacity(kg/h)Total Power(KW)N.W.(kg)Overall Size(mm)QT1001009.25450980*840*1750QT25025010.75670980*840*1750QT50050011.7510001100*970*1750QT1000100014.7515001760*1440*1960Exhibition Invitation Of  2023  RAQ1 How to Order1. Customer send us an inquiry.2. Confirm machine type, order quantity, price, lead time, payment term etc.3.Our sales send the Proforma Invoice with company seal.4. Customer make the payment for deposit and send us Bank receipt.5. Inform the clients that we have got the payment,and will arrange the production according to    yourrequest, inform the estimated time6. Production products photos will send to you for approval.7. Clients make payment for balance and Ship the goods .8. Order is finished when you receive the goods and satisfy with them .9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better2 About after-sell serviceUsually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .3 About goods shippingWe have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.4 About our online Service24 hours online to solve any problem .Your email will be reply within 12 hours .Your satisfy is our pursuit .sincerely hope our cooperation .Contact usContact person:Cynthia Website: gusumachinery.en.made-in-china.com  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
