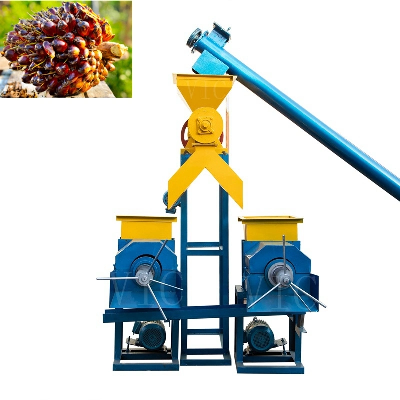

1t/h palm oil production line palm fruit oil press line

                                 1t/h palm oil production line palm fruit oil press lineProduct DescriptionInstructionIn order to meet the customer's request for a large amount of fresh palm fruit oil pressing, we have developed this palm fruit oil press line;We can supply the palm fruit oil press line from the whole bunch of palm fruit to final packaged oil with 500kg/h to 5000kg/hThe palm fruit oil press line contains the following proces:cooking-threshing-crushing-oil pressing-filtering-refining-packagingPlease inform us the capacity you want when you inquiry,we will choose the right machine for you as soon as possibleFlow chart about the palm fruit oil press machine:Pressing workshop: palm bunch--- boiling--separating-- pressing--- filtering--- crude palm fruit oilMain date about the palm oil production lineNo.ProcessnumberDevice nameModelPower(KW)Qty.1L101A/BCooking fermenterCF-1.0 13GL001A/B/C/DFruit basket  44L103ThresherTH-2005.51 L104Electric hoistEH-0.50.7515L105Fruit ConveyorFC2001.516L106Empty fruit bunch conveyorBC4502.217L107Fruit elevator/Screw conveyorEC30/262.218L108CrusherCR-350319L109Palm oil pressVIC-17.52  Pomace ConveyorSC2001.5110L110Vibration filterVF800037*2111L111Clear fuel tankCT-21.5112P101Oil pumpYCB-381.5113L112Plate and frame filter6LB550 114L113Crude oil tankCT-1 115  drying tanKDT500 116 Filling machine  1  Control system  1More pictures and details about the palm oil production line:Cooking fermenter with Electric hoistInstruction:1.Put the whole bunch of palm fruit into the steel fruit basket first;2.Use the electric hoist to put the fruit basket into the cooking pot Thresher with the same electric hoist Instruction:1.Use the electric hoist to put the cooked whole bunch of palm fruit basket out of the cooking pot;2.Move the rack of the hoist to the top of the thresher, open the bottom of the fruit basket, and the raw materials fall into the thresher;3.Start the thresher machine to complete the separation of the palm fruit from the branches4.The palm fruit reaches the distributor through the bucket(or screw conveyor), and the branches are transported out through the belt conveyor. Screw conveyor Palm fruit oil press machine with screw feeder and distributor Vibration filter for the pretreatmentInstruction:Since the freshly squeezed palm fruit oil is relatively viscous, it is necessary to use a vibrating filter to remove impurities, and then filter it with a plate and frame filter. Plate and frame Oil filterDrying machine  Filling machine(optional) Palm fruit oil press machine VIC-1Other palm oil press machine Other palm fruit oil processing line Our factory:Company certification  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
