1tph Briquette making plant sawdust briquette production plant

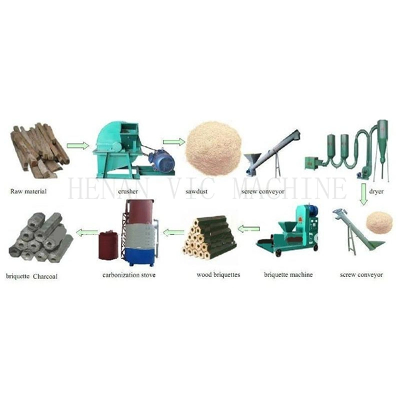

VIC Briquette Making Plant, sawdust Briquette production line  1.Introduction for the line:The briquette making plant is widely used for making charcoal briquette with agricultural and industrial wastes. The raw material can be sawdust, rice husk, sugarcane trash, stalk, coffee husk, paddy straw, sunflower stalk, cotton stalk, bamboo dust, wheat straw, forestry wastes, wood chips and other Agro wastes. The finished briquette has good featured with long buring time, great firepower, smokeless, suitable for as fuel for boiler, stove, family and industrial use.2.Process:(1) crush raw material into pieces not extend 5mm(2) If moisture is extend 20%, should use dryer to dry material to 12%-15%(3) Making briquette stick(4) Put briquette stick into charcoal stove(5) Finished product and packaged.3.Main machine date:NO.Name Model Power (kw)Q'ty (pc)Capacity(kg/h)Size (mm)1Hammer millHM500-28111400-5001400*800*11002Screw conveyerLX-II1.51800-15003500*350*5603vibrating screen6YT-531500-6002500*1300*17504Pipe dryer HGJ-II5.51600-7008000*850*25005Screw separator FL-I1.51500-8004540*450*3506Briquetter ZBJ-II18.52300-3501800*930*12607Carbonization stoveTHL-I1.511000/36h2800*1500*25008Briquette stick PackagerBZ250181----------2200*1200*12004.Main machine pictures:Hammer millvibrating screenPipe dryerScrew distributor and briquette  making machineCarbonization stoveLoading goods:5.Our factory:  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
