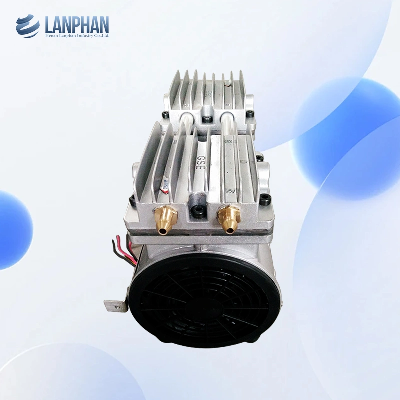

Model 2xz Molecular Sliding Vane Rotary Vacuum Pump

Product Description Brief Description of vacuum pump liquid ringYH500 Diaphragm Vacuum Pump is a kind of variable volume type vacuum pump, and is a new type with excellent functions and high quality after improvement on the basis of learning merits and eliminating shortcoming of similar products at home and abroad. YH500 Diaphragm Vacuum Pump's rotating speed≥1390r/min; input power≤550W; ultimate vacuum is 700Kpa; volume flow is 40L/min. This pump can be widely used in experiments of vacuum filtration, rotary evaporator, refrigeration, dryness, vacuum concentration and molecular distillation.Working principle of YH500 diaphragm vacuum pump:The motor shaft is sheathed with an eccentric wheel, one end of the connecting rod is sheathed on the eccentric wheel, and the other end is connected with the soft membrane. With the rotation of the motor to drive the connecting rod for reciprocating motion. The rod is driven diaphragm which fixed on the pump body to do recycle motion, to generate elastic deformation, so that pumping chamber volume changed periodically. In the pump body, there are an inlet and an exhaust valve, inhale when the volume becomes large, exhaust when the volume becomes small, thereby reach the purpose of pumping gas.Product Features of YH500 Diaphragm Vacuum Pump:1.There is filtering material in the gas exchange position, thereby ensuring the cleanness of air;2.Working without medium, so no oil vapor pollution, is the ideal equipment to obtain clean vacuum;3.New technology and new materials are used in the production process, it is easy to move and work smoothly, thus ensuring the ideal vacuum degree and the higher air flow rate;4.Using non friction of the film body movement, no heat, no friction loss. Diaphragm uses imported rubber, corrosion resistance, long service life;5.Pressure adjustable design, can meet a certain range of vacuum and gas flow rate;6.The bearings use imported classic bearings, smooth running, low noise, high efficiency.Product DisplayTechnical ParameterModelYH500YH700Voltage/Hertz220V/50Hz220V/50HzRotating speed≥1390r/min≥1390r/minInput power≤550W≤800WWorking temperature5~40ºC5~40ºCExtremely vacuum700Kpa700KpaVolume flow40L/min56L/minSize264.5×127×186mm262×128×214.5mmInsulation gradeBBCorollary Equipment 1. YH500 diaphragm pump corollary use with freezer dryer to reach vacuum state, it's an essential corollary equipment in medicine freeze drying, biology, food industry and agricultural products deep processing. 2. YH500 diaphragm pump corollary use with vacuum drying oven for maintaining vacuum state inside the oven, they mainly applies in powder drying and baking in vacuum condition. 3. YH500 diaphragm pump corollary use with rotary evaporator for vacuum pumping, they are widely used in the concentration, crystallization, drying, separation and solvent recovery in industries as medicine, chemical engineering, biopharmacy, etc.. 4. YH500 diaphragm pump corollary use with vacuum filter so as to filtrate vacuum for liquid material, they are ideal vacuum filtration instruments in chemical engineering, medicine, petroleum, papermaking and other areas. Recommending StylesQ: Is YH500 diaphragm vacuum pump need media when operate?A: In the working state, it doesn't need working medium, so there is no oil vapor pollution.Q: What's the maximum vacuum which YH500 vacuum pump liquid ring can achieved?A: The maximum vacuum is 700Kpa.Q: Comparing to similar products,what's the advantage of  YH500?Small size and light weight;Easy to move, work smoothly;Strong pumping force, resistance rot cavity, long using life;No media operation, clean and sanitary, safe and reliable;Smooth running, low noise, high efficiency./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
