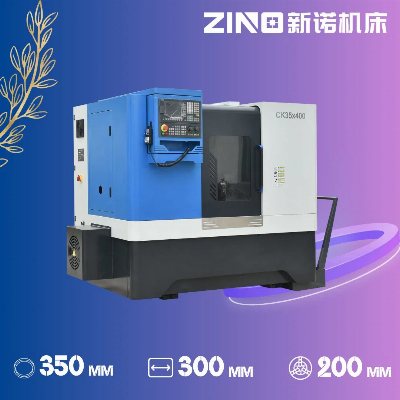

Ht36 CNC Lathe Machine-Linear Guideway-Turning and Milling Machine

FEATURES* 4 shafts linkage Turning and Milling CNC Lathe Machine* One piece base and bed wholly ensures high rigidity of the machine* Taiwan brand high precision linear guide ensure positioning accuracy more stable* Adaptable to various control systems such as GSK, Siemens, FanucMODEL HT36 - Turning and Milling MachineDistance between centers250mm300mm400mmMax. swing over bedΦ350mm Max. swing over cross slideΦ180mm Width of bed350mm SpindleSpindle speed range150-2500rpm Spindle bore 60mm (48 AFTER Hydraulic chuck)Spindle noseA2-6Taper of spindle boreMT6 Stroke & Feeding Speed X axis travel350mm Z axis travel250mm300mm400mmX/Z axis Rapid traverse10/12 m/min ChuckTypeHydraulic collect chuckCollect chuck Number4Turret TypeElectric turret-  (supporting coolant)Tool station number6Tool holder20x20mm Living ToolType2x2 living tool with Y axisLiving Tool motorSIEMENS  servo motorY Axis motorSIEMENS  servo motorTailstock Sleeve Motor Spindle motor typeSIEMENS Spindle servo motorSpindle motor power 5.5 KWX/Z feed motor typeSIEMENS motorX/Z feed motor power1.2 / 2 KWCoolant pump power200W Machine Dimensions Overall dimension(L×W×H)1880 x1400x1620mm1950 x1400x1620mm2050 x1400x1620mmPacking size(L×W×H)2050 x1650x1880mm2120 x1650x1880mm2220 x1650x1880mmNet/Gross weight1500/1700kg1600/1800kg1800/2000kg   Machine  PicturesFAG •Q1. How can I get a quotation?          Leave us message with your purchase requirements and we will reply you ASAP. •Q2. Can you provide customized machine or SPM (Special purpose machine)?         Yes, we provide smart CNC solutions for our customer, in order to increase efficiency.•Q3. Can you provide training for operation CNC machines?         Yes, free training in our factory is available. •Q4. How about your price?         Send me details about what you need, you will get the best price in China. •Q5. What's your warranty terms?          We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the          machine's bill of lading date.  Extended warranty is available at the time of purchase.  •Q6. What's the delivery time, and what's the package?          Normally the delivery time is about 30-45 days. All our Lathe machines are packed with sea worthy package  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
