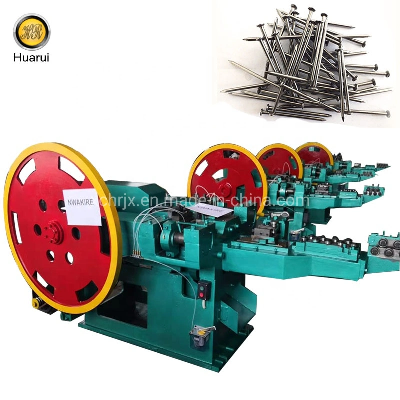

Hot Sell 1 to 6 Inch Wire Nail Making Machine Z94 Series

Hot Sell 1 To 6 Inch Wire Nail Making Machine Z94 Series Features of automatic nail manufacturing machine:1. The nail making machine has the features of high speed, low noise, less impact. And can feed the raw material automatically, which is easy to operate, strong and durable.  2. One nail making machine can make different size range of nails.  3.The nail making flow: steel wire - wire drawing - nail making - nail polishing -finished nails/ raw material-nail making-nail polishing-finished nails.  4. The user can get high profit in a short time. Specifications of automatic nail manufacturing machine:Function:This machine adopts piston structure to ensure the high working speed, low noise and less chance of impact characteristics, especially can make excellent quality YouMao nail and other special-shaped nail which are suitable for high speed studs for welding machine and nail gun.Main technical parameters:Model No.Nail diameterNail lengthMotor powerWorking speedOverall dimensionMachine weightZ94-1C0.9-1.6mm9-25mm1.5kw450pcs/min1.5*1.3*1.2m0.8tonZ94-2C1.2-2.8mm16-50mm2.2kw380pcs/min1.7*1.3*1.4m1.15tonZ94-3C1.6-3.5mm25-75mm3.0kw320pcs/min2.0*1.4*1.4m1.5tonZ94-4C2.8-4.5mm30-100mm4.0kw260pcs/min2.2*1.6*1.65m1.8tonZ94-4C(2)2.8-5.0mm50-120mm4.0kw260pcs/min2.32*1.55*1.3m2.1tonZ94-5.5C3.5-5.5mm75-150mm5.5kw220pcs/min2.5*1.6*1.5m2.15tonZ94-5C(2)3.0-6.5mm80-220mm5.5kw130pcs/min3.1*1.7*1.65m2.7tonZ94-6C3.0-8.0mm80-220mm7.5kw130pcs/min3.1*1.7*1.65m4.5tonZ94-6C(2)4.0-8.0mm80-220mm11kw160pcs/min3.22*1.82*1.5m4.5tonZ94-6C(3)5.0-10.0mm150-320mm11kw160pcs/min3.32*1.75*1.55m4.6tonZ94-8A5.0-10.0mm180-320mm22kw120pcs/min6*2.1*1.9m10tonHR-7112A3.0-5.5mm150-350mm7.5kw80pcs/min2.9*1.6*1.7m3.15tonHR-7112B4.0-8.0mm150-350mm7.5kw60pcs/min3*1.75*1.8m5.5tonHR-3002.5-4.5mm150-300mm5.0kw60pcs/min3.1*1.6*1.55m2.35tonHR-4003.0-6.5mm150-400mm5.5kw60pcs/min3.1*1.6*1.55m3.0tonHR-5003.0-6.5mm150-500mm5.5kw60pcs/min3.1*1.6*1.55m3.0tonOther equipment related1. Wire drawing machineFunction: This is the combined wire drawing machine. If the diameter of wire is thick before it entering the nail making machine, this machine can reduce the diameter of wire, then the user can get the diameter that they need. It is can be matched with 2 combinations, 3 combinations, 4 combinations or more according to the daily capacity.Main technical parmaeter:Model No.LS2-560LS3-560LS4-560LS5-560Maxim Inlet Wire Diameter6.5mm6.5mm6.5mm6.5mmMinimum Outlet Wire Diameter2.0mm2.0mm2.0mm2.0mmTotal motor power15kw*2+2.2kw15kw*3+2.2kw15kw*4+2.2kw15kw*5+2.2kwDrawing speed135m/min150m/min175m/min205m/minRemarks, this machine comes with descaling device and discharging device.2. Nail polishing machineFunction: This machine is auxiliary equipment of nail making machine. When the nails have been made by the nail making machine, it will be not very bright. The user can use this machine to polish the nails to let it brighter, smoother and anti-rust.Main technical parameter:ModelMotor powerOverall sizeCapacity of nailsSD-4002.2kw1.64*0.9*1.0m400kgSD-6004kw2.0*1.0*1.4m600kgSD-10007.5kw2.0*1.5*1.5m1000kgSD-200011kw2.5*2.1*2.0m2000kgPointing rolling machine: to sharpen the head of the wire, then it can enter the wire drawing machine.Butt welding machine: to weld two wires coil together. When one wire coil finish drawing, this machine can connect the next wire coil to continue to be drawn by the wire drawing machine.Cutter grinding machine: when the nail cutter of the nail making machine is not so sharp, the user can use this machine to sharpen it.More detailed machine pictures in our workshop:Customer visitingCE certificationFinished nailsWelcome to contact us for more machine details and latest pricesContact person: Ada Wang  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
