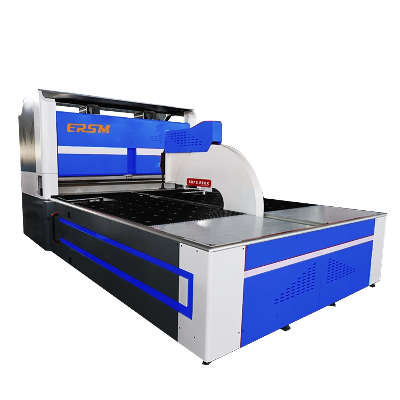

Stable Performance Max. Thickness Carbon Steel 2.0mm Panel Bender Center

Produce Features· Suitable for a variety of bending material (carbon steel, 304 stainless steel, 201 stainless steel, aluminum plate, coated sheet, etc.)· Full servo control, low energy consumption. Servo-based torque feedback system.· Muliti-axis linkage control, with a high degree of automation.· Various feeding and discharging methods (Labour, Robotic arm, Gantry robot, Conveying platform, etc.)· C-type pressure arm, lead screw multi-link transmission mechanism, pressure adjustment system.· Easy programming. Operator can customize the design and control of complex sheets according to their needs.· Flatten hem instructions, press the edge up or down.  Arc command, only need input the radius to realize the bending of the arc.· Three-axis fully automatic positioning system.Multiple positioning.Product ParametersModelBCP-2500-2.0Feeding StructurePressure arm typeMax. Bending Length2500mmMax. ThicknessStainless Steel(SS)1.5mmCarbon Steel (MS)2.0mmAluminum(AL)3.5mmMax. Bending Height170mm(Customized)Min. Bending Height8mmMin. Inner Size of Four-side Bending160*240mmMin. Inner size of One-side Bending160mmMin. Arc Radius2mmMin. Continuous Bending Speed0.5sBending Angle-90°-90°, >1.5mm0°-180°, ≤1.5mmAxisStandard 13 Axis15 Axis Can be CustomizedMaximum Feeding Speed120m/minEquipment Size6100*3800*2320mmTotal Power43KWAverage Power5KWWorkbench StructureBrush and universal ballFAQ1. Who are we? A:We are based in Jiangsu, China, start from 2011,sell to Southeast Asia(20.00%),Eastern Europe(20.00%), WesternEurope(10.00%), North America(10.00%), Northern Europe(5.00%), Central America(5.00%),SouthAmerica(5.00%),Eastern Asia(5.00%),South Asia(5.00%),Oceania(5.00%),Southern Europe(5.00%),Africa(3.00%),MidEast(2.00%). There are total about 11-50 people in our office. 2.Which payment terms you can accept?A: We can accept flexible payment include Bank Transfer, LC, DP, West Union, Paypal, or Combination terms as negotiation. 3.Which shipping way can you provide?A: We can provide shipping by sea, by air, by express and etc according to customer requirements. 4.How to place order? A: When you are ready to order, please contact us for confirm the suitable solution & plan & model. What cannot be ignored is you should provide a copy purchase order to ensure that your order is processed properly. 5.Do you have an inspection procedure for the product?A: Yes, We have a strict inspection of product quality and packing./* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
