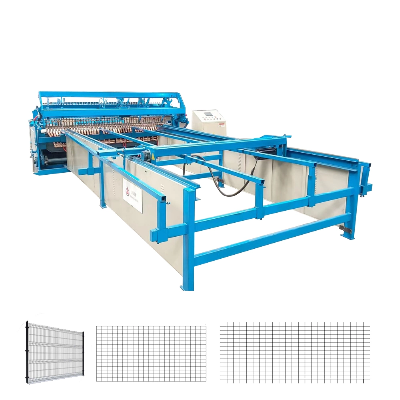

High Quality Fence Panel Mesh Welded Machine

Product Description1.1 Our fence mesh welding machine cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding .1.2 Per-cut line wires are fed by hand.Per-cut cross wires auto feeding with the high production rate,which keep the mesh surface is very flat. The hopper adopts the step motor control ,brake motor wheels and the cross wire will fall automatically from the hopper.1.3 Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.1.4 The greatest advantage is that  you can adjust the distance of cross wire at random on the  same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.1.5 Pulling mesh way adapts step motor according to the setting parameters into the touch screen,ensures the precision of pulling mesh. Detailed PhotosThreading Line Wire Device and Cross  Wire Inspection Device             Water Welding Transformers                                                       Step Motor to Pulling Mesh Device                                       PLC                                                               Touch Screen                                                       Control SiliconProduct ParametersItemWZ-2000AWZ-2500AWZ-3000ANumber of Electrodes404860Max.Mesh Width2100mm2500mm3000mmWelding Wire Diameter3.0-6.0mm/5.0-8.0mm3.0-6.0mm/5.0-8.0mm3.0-6.0mm/5.0-8.0mmMesh Length500-3000mm500-3000mm500-3000mmCross Wire Space50-250mm50-250mm50-250mmLine Wire Space50-250mm50-250mm50-250mmElectric Capacity125KVA*5125KVA*6125KVA*8Welding Speed50-70t/min50-70t/min50-70t/minControl SystemPLC control and Touch ScreenItemWZ-2000HAWZ-2500HAWZ-3000HANumber of Electrodes404860Max.Mesh Width2000mm2500mm3000mmWire Diameter3.0-6.0mm3.0-6.0mm3.0-6.0mmMesh Length500-3000mm500-3000mm500-3000mmCross Wire Space50-250mm50-250mm50-250mmLine Wire Space50-250mm50-250mm50-250mmElectric Capacity125KVA*5125KVA*6125KVA*8Welding Speed50-70t/min50-70t/min50-70t/minLine Wire Feeding WayBy the Special Electric HopperCross Wire Feeding WayBy the Special Electric Hopper3D Bending WayBending AutomaticallyControl SystemPLC control and Touch ScreenItem WZ-1600LAWZ-2100LAWZ-2500LAWZ-3000LANumber of Electrodes16222626Max.Mesh Width
