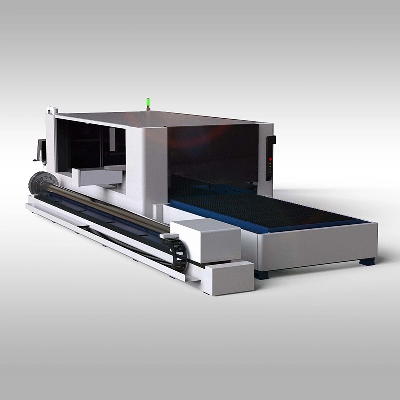

Combined Fiber Laser CNC Metal Cutting Machine with Pallet Changer

Combined fiber laser cnc metal cutting machine with pallet changer   Features:  1. Fiber laser cutter power: 1000W, 1500W, 2000W, 3000W, 4000W, 6000W, 10000W, 12000W, etc.2. Fiber laser generator: JPT, RAYCUS, MAX, NIGHT, IPG etc.3. Fiber laser cutter materials: Iron, aluminum, carbon steel, stainless steel, copper, hardware and another metal sheet materials.4. Rotary axis, Dual use, you can cut metal sheet and metal tube, other optional parts, exchange working table, full cover, etc.5. Good quality, low cost and relaible service, with CE certificate.Specifications of Fiber Laser Cutting Machine:  Model DV-CT3015Working Area3000*1500mm/4000*2000mmApplicable MaterialsStainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titanium and other plate products.Laser Power1000w-6000wMaterials ThicknessMAX 40mmDimensions(L*W*H)5350*2400*2000mmLaser sourceIPG/MAX/RaycusLaser headRAYTOOLS/PRECITECWeight4500kgRepeat Positioning Accuracy±0.02mmAccuracy of Positioning±0.03mmTube Cutter Length3m/6m  Chuck Diameter 20-230mmChuck TypePneumatic automatic chuckMax Acceleration1.2GSpecified voltage and frequency380V/50Hz/60Hz/60A(Customizable)Main Configurations of Metal Fiber Laser Cutting Machine:* Heavy iron welded machine bed with no deformation* WIFI wireless control for remote fault detection* Swiss RAYTOOLS laser head* Japan YASKAWA/Panasonic/Fuji servo motor* France MOTOREDUCER reducer* France electronic components* Japan SMC pneumatic components, Japan NSK bearings*  Cypcut operating system, Taiwan rails, racks* Automatic rail lubrication system, smoke exhaust system  Machine Details of Metal Fiber Laser Cutting Machine:      MACHINE BODYHeavy duty steel frames bed adopts weldingstructure, rough machining after annealing, then vibration aging treatment, and then finishing. It can completely eliminate the stress of welding and machining,good rigidity, high precision, which can maintain long time use without deformation.Pneumatic Chuck System for Tube Cutter:1) Dual use with tube cutter attachment;2) 3m/6m tube length for your massive production;3) 20-350mm chuck system to largely flexiblymeet your cutting requirement;4) Cost effective to achieve both plate and tube cutting with one machine  Cypcut  system is  a control system developed for metal cutting processing. It supports high-precision and high-efficiency cutting .The auto focus Raytools laser cutting head comes with the external motor and the built-in drive unit through the linear driver and the focusing lens can automatically change the position in the range of 25mm. The user can set the focus continuously through the program to complete the rapid perpiercing of thick sheets or other different thickness and material sheets.  The extruded aluminum beam  is developed to improve the beam structure and optimize its dynamic performance. The whole beam is processed by heat treatment process to make the beam obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.Application: Sheet Fiber Laser Cutting Equipment is suitable for metal cutting with Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring Steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc.Fiber Laser Cutting Machine is widely used in manufacturing Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal Crafts, Metal Art Ware, Elevator Panel Cutting, Hardware, Auto Parts, Glasses Frame, Electronic Parts, Nameplates, etc.FAQ:1. When I get this machine, but I don't know how to use it. What should I do? There are videos and English manual together with the machine. Also, our technical team is 24 hours online for service support.2. If some problems happen to this machine during warranty period, what should I do? We will supply free parts during machine warranty period if machine have some problems. While we also supply free life long after-sales service. If you have any question,just contact us freely.3. There are so many machine types, which one should I choose?It is important to compare all data before choose the best prototype. Also, our sales team provides online services to resolve your confusion, please do feel free to contact us.4. This is my first time to buy your machine; I have no ideas about the machines quality? Each machine is strictly produced based on the industrial standard and CE certifications. Our products have CE certifications verified by TV SD, Bureau Veritas and etc. Customer is our first priority. We are confident in our high quality and reliable services.5. How about the payment terms?Wire transfer/Weste
