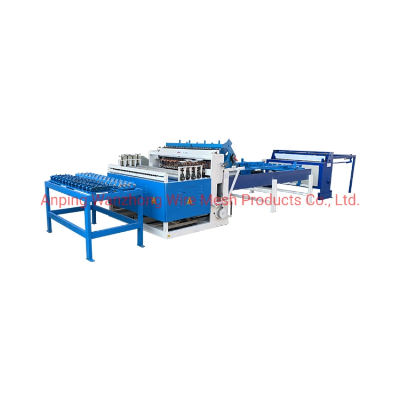

New Animal Poultry Metal Cage Welded Wire Mesh Making Machine

Product DescriptionPoultry Cage Mesh Welding Machine1. The steel cage poultry mesh welding machine adopts electrical & electronic synchronous control technique, both separate-phase welding and welding time composed of digital and integrated electric circuit, high precision, stable performance, solid welding joint and no burn marks.2. cross wires are pre-straightened and pre-cut, fed from hopper. The hopper is driven by stepper motor, accurately auto-feeding wire.   Detailed Photos                Water Cooling Welding Transformers                                          Cross Wire Inspection Device                                                    Up Welding Electrodes                    Line Wire Straightening Device                                             Automatic Dropping Mesh Device                                                     The  Special TrolleyProduct Parameters ItemWZ-1200AWZ-1600ANumber of Electrodes1618Max Mesh Width1200mm1600mmWire Diameter2.0-4.0mm2.0-4.0mmCross Wire Space25-200mm25-200mmLine Wire Space25-200mm25-200mmRated Power125KWA*3125KWA*4Welding Speed0-80times/min0-80times/minControl SystemPLC and Touch ScreenPLC and Touch ScreenCertificationsPackaging & ShippingOur Advantages1.The line wires are fed from coil. The mesh edge is regular, unnecessary to slice.2. Mesh pulling system adopts servo motor to pull mesh, the opening is easy to regulate accurately and can be adjusted freely within a certain range.3. The finished products can be in coil or in panel.4.The welding speed is fast and it is easy to learn and operate. Only two operators are enough.5.Our cage poultry mesh welding machine adopts high quality and highly automated control system.After Sales ServiceSpecial technical engineers supply urgent technical support and consulting,at the same time,we assign one technical engineer to install and debug the machine according to our clients, then our clients will assume visa,round-trip tickets,eating,accommodation costs and ensure they the personal health and property safety, and pay 120 salaries per day.           Guarantee: Two years. Within two years after the date when the goods reach the destination port if the parts (not including easily damaged parts ) are broken for reasons which are not human, the seller will change the same with a new one free of cost. but the buyer will pay for postage.Equipment Program part life-long maintenance. Customer Photos/* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
