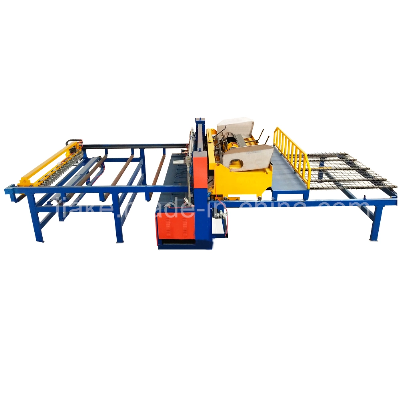

Building Construction Reinforcing Concrete Wire Mesh Welding Machine1. Specification:1.Panasonic (Japan)servo motor pulling mesh2.(France)low voltage elements3.PLC control system 4.CE,ISO Certificate2. Technical Parameter Wire diameter 5-12mmMesh width Max.3mm Line Wire space 100-300mm Cross Wire Space 50-300mm Welding Electrode No. 30pcs Welding speed 80-100times/min Rated capacity 100kva*15 Motor power 7.5kw Line wire feeding pre-cut cross wire feeding pre-cut Weight 6500kg Dimension(L*W*H) 14*3.1*1.7M3. Machine features1.All the pneumatic components used are with world famous brand, easy to get the parts locally.2.PLC controlled, Easy to set and control, more intelligent and reasonable.3.The greatest advantage is possible to adjust the distance of line wires as wishes on the same mesh panel.4.Welding Wire diameter 5mm to 12mm. Wire Material can be low carbon wire, galvanized wire plain steel bar, cold rolled rebar, hot rolled rebar.5.Panasonic servo motor pulling mesh.6.The longitude wires and the cross wires should be pre-straightened and pre-cut.7.The longitude wire space and cross wire space can be adjusted.You only need to input thedata in the computer. 4. Related machine.Mesh welding machine series: Reinforcing mesh welding machine, fence mesh welding machine, animal cage welding machine, steel grating welding machine, electric welded wire mesh machine, wedged wire screen welding machine, wire straightening and cutting machine etc. Mesh weaving machine series: Chain link fence machine, barbed wire machine, razor barbed wire machine,wire drawing machine, expanded metal mesh machine, grassland wire mesh machine, gabion mesh machine, hexagonal wire mesh machine,steel fiber making machine etc.4.1 Fence mesh welding machineFence mesh welding machine is also called fence mesh welding line, security fence machine, anti-climb fence welding machine, and fence panel machine. It is used to make fence mesh, road mesh, reinforcing mesh, shelf, explosion-proof wall etc.ModelDP-FPWire diameter2.5-6mmLine wire pitch50-300mmWelding torch48pcsCross wire pitchMin.12.7Welding speedMax.80 times/minWelding widthMax.3mWelding transformer150kva*6/10pcsMesh lengthMax.4mMesh typepanel mesh4.2 Welded wire mesh machine in rollWelded wire mesh machine, also called welded roll mesh machine, electric welded mesh machine, electric mesh welding line.It's used to make construction mesh, wall mesh, animal cage, mining etc.ModelDP-DNWWire diameter0.65-2.5mm Line wire pitch6.25-150mm Cross wire pitch6.25-150mm Mesh width0.9-2.5mm Main motor2.2kw/4kw/5.5kw/7.5kw Welding transformer60-80kva*3/4/5/7/8pcsWelding speedMax.60-180 times/min Weight2T/2.5T/3T/3.5T/4T Mesh typeroll mesh 4.3 Roll BRC mesh welding machine Roll mesh welding line,also called automatic welded mesh machine,welded wire mesh roll machine,used to make road mesh,reinforcing mesh,construction mesh etc.ModelDP-FP-2500BNWire diameter2.5-6mmLine wire pitch50-300mmCross wire pitchMin.50mmWelding widthMax.2500mmRoll lengthMax.100mmWelding speedMax.75 times/minWelding torch48pcsWelding transformer150kva*6pcsMesh typeroll mesh4.4 Pneumatic reinforcing mesh welding machineReinforcing mesh welding line,also called BRC mesh welding machine,construction mesh welding machine.with more than 20 years experience on desgin and manufacture,our BRC mesh welding machine is featured by high capacity,easy operation and precise control.ModelDP-GW-2500Wire diameter3-12mmLine wire pitch50-300mmCross wire pitchMin.12.7/25mmMesh lengthMax.12mMesh widthMax.3000mmWelding torchMax.24/30/48/61pcsWelding transformer150kva*6/8/12/15pcsWelding speedMax.80 times/minMesh typepanel mesh4.5 Chicken cage mesh welding machine Chicken cage mesh welding machine,also called poultry cage mesh welding machine,breed aquatics welding machine. It's used to make breed aquatic mesh,poultry mesh,coop,pigeon mesh,rabbit mesh etc.ModelDP-AW-1600EWire diameter2.2-3.5mmMesh widthMax.1600mmLine wire pitchMostly 50-300mmWelding speedMax.1200 times/minCross wire pitchMin.20mm or customWelding torch25/30/32pcsWelding transformer125kva*3/4pcsWeight2.5T/3T/3.2TMesh panelpanel mesh and roll mesh5. Loading photos.- Hebei Jiake Welding Equipment Co.,LTDJiake machine has been managed by the standard of ISO9001 International Quality Management System. We have built good reputation among our customers with excellent quality products, reliable services and credit. We have been supplying the domestic market and also have exported to more than 100 countries and regions including: Middle East, Kazakhstan, Vietnam, Philippines, India, Thailand, South Africa, Sudan, Polynesia, Russia and other countries and regions.6. FAQ to Hebei Jiake Welding Equipment Co.,LTDQ1: Where is your factory located?A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.Q2: How many years are your company engaged in the wire mesh machines?A: M
