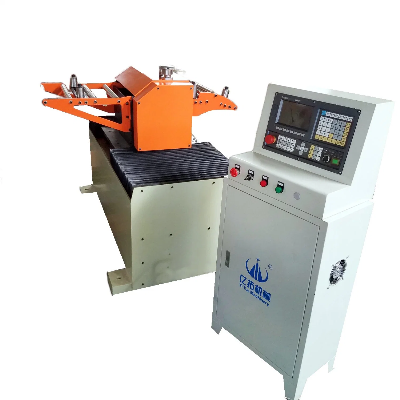

Coil Pneumatic Relax Servo Feeder Machine Roll Feeder Nc

Product DescriptionMain Features1. Output feeding line height, adjusted by screw rod manually.2. Adopt a high-quality brushless servo motor, effectively shortening feeding distance adjusting, and testing time.3. Use high sensibility decoder to back-feeding accuracy and improve feeding precision.4. Drive by the timing belt, which can eliminate gear gaps, low abrasion, noiseless, and free of lubrication.5. Motor is internally installed so as to avoid possible damages caused during transportation and loading.6. Adopt Taiwan imported ball screw and linear rail, motor direct-drive, with high deflection precision. Detailed Photos Product Parameters Model PNC-200P PNC-300P PNC-400P PNC-500P PNC-600P Width mm 200 300 400 500 600 Thickness mm 0.6-3.5   Feeding capacity (width×thickness)   mm 200×2.0 180×2.5 150×3.0 120×3.5 300×2.0 280×2.5 220×3.0 180×3.5 400×2.0 380×2.5 300×3.0 250×3.5 500×2.0 380×2.5 300×3.0 250×3.5 600×2.0 460×2.5 380×3.0 320×3.5 Feeding length mm 0-9999.99 Feeding speed m/min 20(max) Moving speed m/min according to the products and press machine's speed  Max. Moving distance mm each side  100 each side 150 each side  200 each side 250 each side 300 Feeding motor kw 0.85 1.3 1.8 1.8 1.8 Moving motor kw 0.85 0.85 1.3 1.3 1.3 Feeding accuracy mm ±0.2 Releasing system Pneumatic type Pressing type   Spring pressing Applicable material SPCC, SUS(common) Control type   Electric control cabinet and hand switch box Mainly configuration   Yaskawa motor, Mitsubishi PLC, Weinview HMI, Delta VFD Optional configuration   Full automatic lubricator/semi-automatic lubricator, conveyer belt, scrap recoiler, scrap cutter, coil car, pressing arm, supporting device Feeding line height   (Distance from floor to press worktable) + (Bottom mold height) ± 65mm Feeding direction   Left→Right/ Right→Left Electrical power 3 Phase, AC380V±10%,50HZ ±2%  (It can be changed according to your requirements) Pneumatic pressure Mpa 0.5     Features and advantages 1. For the feeding part: adopts position half closed-loop control, under this control mode, the servo motor's feedback elements are not only the speed feedback elements but also the position feedback elements. Then can realize the control of speed and position automatically. 2. For moving part: adopts servo motor, through precise ball screw sets, turning the circling motion to linear motion, guaranteeing the positioning accuracy.  Our AdvantagesQingdao Yituo Machinery Equipment Co., Ltd. implements Japanese technology into the production line, and uses a complete and excellent processing system through systematization, special accessories, etc., to flexibly and quickly supply the needs of each machine assembly to ensure product quality and delivery timeliness , Timely service. Strictly follow standard operations to create high-precision and high-quality stamping automation equipment comparable to Japanese models.   FAQ1. How can I get the price?- We usually quote within 24 hours after we get your inquiry (except on weekends and holidays). If you urgently want the price, please email us or contact us in other ways so we can offer you a quote.2. Can I buy samples?- Yes. Please feel free to contact us.3. What is your lead time?- It depends on the order quantity and the season you place the order. Usually, we can ship within 7-15 days for small quantities, and about 30 days for large quantities.4. What is your payment term?- T/T, Western Union, MoneyGram, and Paypal. This is negotiable.5. What is the shipping method?- It could be shipped by sea, by air, or by express (EMS, UPS, DHL, TNT, FEDEX, etc.). Please confirm with us before placing orders.6. How do you make our business long-term and good relationship?- We keep good quality and competitive prices to ensure our customers benefit. Furthermore, we respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.factory warehouse  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
