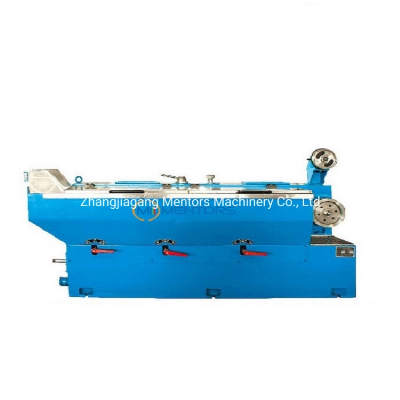

CCA Aluminum Alloy Intermediate Wire Drawing Machine

ApplicationThis machine is used for drawing CCA wire(copper coating aluminum or aluminum alloy wire, copper cladding aluminum).The finished wire is wound by the 630 single take-up machine.Feature1) Max.Dies Qty: 172) Outlet wire size: 0.65-1.6mm3) Max speed: 1500m/min4) Raw material: CCA wire(copper coating aluminum, or copper cladding aluminum)Main Specification Machine typeSY-17DLHMax.Inlet Dia.(mm)Ф3.5Outlet Dia.( mm )Ф0.65~Ф1.6Max. Die No.17Max.line speed(M/Min)1500Body structureIroned castThe slip ratio of the machine15%Fix speed capstan Dia.(mm)250Transmission typeBy gearMain motor power  (KW)45Take-up motor power (KW)7.5Lubrication typeFull immersionTake-up bobbin size (mm)Φ500/Φ630 (Bore is Φ127mm) or changed by requirementThe bobbin fixed typeClamping and relaxing by air Machine Characteristic1). Special seal system between the gearbox and drawing section to prevent oil leakage and mixing.2). Ironed cast and Wear-resistant capstan can keep a long life.3). Smaller mechanical reduction ratio to reduce the wire break frequency.4). Besides CCA wire, also can be used for all-alloy wire.Company ProfileMentors is a professional manufacturer and exporter of wire drawing machines & cable making machines in the wire and cable field since 2008, It is successful in making all kinds of high-speed wire drawing machines, annealing and tinning machines, double twist bunching machines, extruders, etc.Mentors Group is able to provide a whole solution. Also our engineering team with 23 years of R&D and production experience in the field of wire drawing machines and other cable-making machines. A cost-effective, highly efficient, reliable, and easy-to-operate machine is what we deliver. The independent research and development of the Copper Wire Drawing Machines have already been supplied to world well-known companies such as Sumitomo, and Jiangxi Copper Corporation(Fortune Global 500 companies). And New Design Remote Controlled Full Automatic cable making equipment, which can load and unload bobbin without an operator, to help our customers develop faster. Our products have been exported to many countries. Such as Russia, Vietnam, India, Iran, Pakistan, Ethiopia, Brazil etc.Mentors will continue to combine the advanced technology with China's manufacturing advantage and provide wire drawing machines and cable manufacturing machines with European Standards to worldwide customers.  FAQQ1: What's the payment terms?A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.Q2: How about the after-sell service? A2: The engineer will be dispatched as needed. Q3: How much need pay for after-sell service? A3: The buyer provides the engineer's round-trip flight tickets, board and lodging, security as well and each person's daily wage. Q4: Can you support a complete project instead of a single machine?A4: Yes, besides the machine, the whole solutions for raw materials, auxiliary parts, worker training, etc. can be offered.Q5: What kind of Guarantee you can offer?A5: 12 months since shipping date and charge for repair the whole life. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
