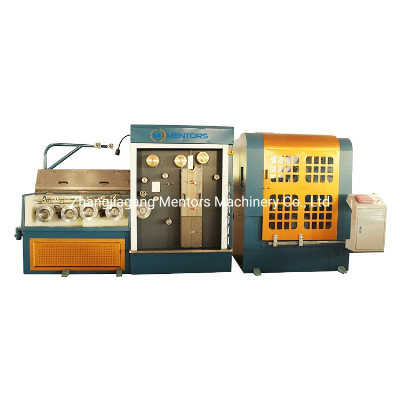

Two Wires Copper Multi Wire Drawing Machine with Annealing

ApplicationThis machine is used for drawing and annealing copper wire from 1.2mm to 0.15-0.4mm. Feature1). Wire Quantity: 2 wires2). Max.Inlet wire: 1.2mm, outlet wire: 0.15-0.4mm3). Raw material: pure copperMain Specification Machine TypeSY-DT22.2Drawing Wire No.2 WiresInlet Dia.(mm)1.2Outlet Dia.          (mm)0.15-0.40Max. Die No.22Max. Line Speed    (m/min)1800Main Motor Power     (kW)22Take-up Motor        (kW)4Fix Speed Capstan Dia.)(mm)160Take-up bobbin size(mm)300/400 changed by requirementOnline Continuous Annealing DeviceType160T-2200T-2Annealing Wire No.2 WiresAnnealing Wire Dia.(mm)  0.15-0.350.30-0.7Annealing Voltage  ( V )0 ~ 600 ~ 60Annealing Current  ( A )0~350A0~600A Machine Characteristic1) More stability, high production efficiency, low noise, and ease of operation.2) Space saving around 50%3) Electricity Saving around 10%; Labour Saving 50%4) High efficiency for the next pay-off progress.Company ProfileMentors is a professional manufacturer and exporter of wire drawing machines & cable making machines in the wire and cable field since 2008, It is successful in making all kinds of high-speed wire drawing machines, annealing and tinning machines, double twist bunching machines, extruders, etc.Mentors Group is able to provide a whole solution. Also our engineering team with 23 years of R&D and production experience in the field of wire drawing machines and other cable-making machines. A cost-effective, highly efficient, reliable, and easy-to-operate machine is what we deliver. The independent research and development of the Copper Wire Drawing Machines have already been supplied to world well-known companies such as Sumitomo, and Jiangxi Copper Corporation(Fortune Global 500 companies). And New Design Remote Controlled Full Automatic cable making equipment, which can load and unload bobbin without an operator, to help our customers develop faster. Our products have been exported to many countries. Such as Russia, Vietnam, India, Iran, Pakistan, Ethiopia, Brazil etc.Mentors will continue to combine the advanced technology with China's manufacturing advantage and provide wire drawing machines and cable manufacturing machines with European Standards to worldwide customers. FAQQ1: What's the payment terms?A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.Q2: How about the after-sell service? A2: The engineer will be dispatched as needed. Q3: How much need pay for after-sell service? A3: The buyer provides the engineer's round-trip flight tickets, board and lodging, security as well and each person's daily wage. Q4: Can you support a complete project instead of a single machine?A4: Yes, besides the machine, the whole solutions for raw materials, auxiliary parts, worker training, etc. can be offered.Q5: What kind of Guarantee you can offer?A5: 12 months since shipping date and charge for repair the whole life. /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
