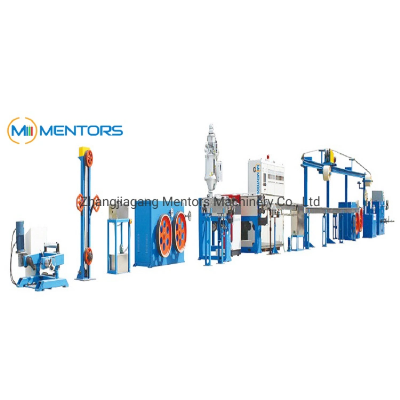

Coaxial Cable Cat5 CAT6 Physical Foaming Extrusion Production Line

ApplicationThis type of machine is used for making coaxial cables, and communication cables.It's suitable for coaxial cable, communication cable, and transmission cable. such as IEEE 1394, CAT5,CAT6, DVI,ATA, and UL29919.Insulation material: FM-PE, PE. Feature Model SY-45+30SY-65+35SY-90+35 Pay off TypeActive or passive pay-offPay off bobbin dia.(mm)400-500500-630800-1000Single wire diameter(mm)0.4-1.00.8-2.01.0-5.0Dia. Of insulation wire(mm)1.5-5.03.0-14.05.0-45.0Screw diameter456590Screw L: D34:1 special-use screw36:1 special-use screwExtrusion capacity (kg/h)3060150Main motor15HP30HP60HPCooling length(m)253645Haul-off wheel dia.(mm)6308001000Haul-off powerDouble haul-off 5HPDouble haul-off 7.5HPline speed(m/min)10-18010-15010-100Taking up typeDouble spoolsTaking up bobbin dia.(mm)500-630630-800800-1000Electricity controlInverter +PLC touchscreenMachine Characteristic1)Foaming percentage:imported high-pressure nitrogen injection system(MAX.82%);low-pressure nitrogen injection system(MAX.75%);2)Quality control: outer diameter test and capacitance detector, control the diameter and foaming during the whole progress.3)Crosshead: special physical foaming crosshead.4)Electrical control: inverter with touch screen.Packaging & Shipping Company ProfileMentors is a professional manufacturer and exporter of wire drawing machines & cable making machines in the wire and cable field since 2008, It is successful in making all kinds of high-speed wire drawing machines, annealing and tinning machines, double twist bunching machines, extruders, etc.Mentors Group is able to provide a whole solution. Also our engineering team with 23 years of R&D and production experience in the field of wire drawing machines and other cable-making machines. A cost-effective, highly efficient, reliable, and easy-to-operate machine is what we deliver. The independent research and development of the Copper Wire Drawing Machines have already been supplied to world well-known companies such as Sumitomo, and Jiangxi Copper Corporation(Fortune Global 500 companies). And New Design Remote Controlled Full Automatic cable making equipment, which can load and unload bobbin without an operator, to help our customers develop faster. Our products have been exported to many countries. Such as Russia, Vietnam, India, Iran, Pakistan, Ethiopia, Brazil etc.Mentors will continue to combine the advanced technology with China's manufacturing advantage and provide wire drawing machines and cable manufacturing machines with European Standards to worldwide customers. FAQQ1: What's the payment terms?A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.Q2: How about the after-sell service? A2: The engineer will be dispatched as needed. Q3: How much need pay for after-sell service? A3: The buyer provides the engineer's round-trip flight tickets, board and lodging, security as well and each person's daily wage. Q4: Can you support a complete project instead of a single machine?A4: Yes, besides the machine, the whole solutions for raw materials, auxiliary parts, worker training, etc. can be offered.Q5: What kind of Guarantee you can offer?A5: 12 months since shipping date and charge for repair the whole life.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
