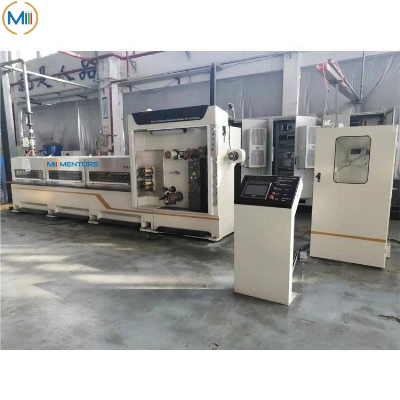

High Efficiency Energy Saving 16 Wires Multi Wire Drawing Machine with Annealing

ApplicationThis machine is mainly used for drawing copper wire to 0.16-0.40 mm wire. It is equipped with up to 25 Dies and the max drawing speed can reach 25m/s.Multi Wire Drawing Machine with Annealing for 16 Wires provides dies quick change system which can realize efficient production. Feature1). Wire Quantity: 16 wires2). Max.Inlet wire: 1.8 mm, outlet wire: 0.16-0.4mm3). Raw material: pure copperMain Specification Machine TypeSY100-16-25Drawing Wire No.16 WiresMax. Die No.25Max.Inlet Dia.(mm)1.8Outlet Dia.(mm)   0.16 ~ 0.40Drawing Capstan Dia. (mm)100Max.Drawing Speed.(m/s)25Annealing current (A)2500Annealing voltage (V)60Drawing capstans structure and material Double layer 8 grooves, made from stainless steel, With ceramic compound capstans (zirconium oxide).Drawing lubricantDrawing lubricant: about 1.2 bar at the machine, inlet temperature: 30-45°C, twin pump system design to ensure stable Drawing Lubricant supply.Machine ConstructionIndividual Lubricant supply for Gearing and bearing system. Machine ConstructionCasting for integral frame and gearbox.Annealing and the tempering treatment Frame body.longer production life. GearingThe transmission shaft of the Production Line and gears at all levels are tempered and ground. The hardness is HRC56-60, and the gear accuracy is above grade 5 of the national standard.  Machine Characteristic1) High production efficiency, low noise, and ease of operation.2) Space saving.3) Electricity Saving and Labour Saving.4) High efficiency for the next pay-off progress.5) Quick die change system for dies quantity saving 30%.6) Two clutches for faster speed. Packaging & Shipping Company ProfileMentors is a professional manufacturer and exporter of wire drawing machines & cable making machines in the wire and cable field since 2008, It is successful in making all kinds of high-speed wire drawing machines, annealing and tinning machines, double twist bunching machines, extruders, etc.Mentors Group is able to provide a whole solution. Also our engineering team with 23 years of R&D and production experience in the field of wire drawing machines and other cable-making machines. A cost-effective, highly efficient, reliable, and easy-to-operate machine is what we deliver. The independent research and development of the Copper Wire Drawing Machines have already been supplied to world well-known companies such as Sumitomo, and Jiangxi Copper Corporation(Fortune Global 500 companies). And New Design Remote Controlled Full Automatic cable making equipment, which can load and unload bobbin without an operator, to help our customers develop faster. Our products have been exported to many countries. Such as Russia, Vietnam, India, Iran, Pakistan, Ethiopia, Brazil etc.Mentors will continue to combine the advanced technology with China's manufacturing advantage and provide wire drawing machines and cable manufacturing machines with European Standards to worldwide customers.FAQQ1: What's the payment terms?A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.Q2: How about the after-sell service? A2: The engineer will be dispatched as needed. Q3: How much need pay for after-sell service? A3: The buyer provides the engineer's round-trip flight tickets, board and lodging, security as well and each person's daily wage. Q4: Can you support a complete project instead of a single machine?A4: Yes, besides the machine, the whole solutions for raw materials, auxiliary parts, worker training, etc. can be offered.Q5: What kind of Guarantee you can offer?A5: 12 months since shipping date and charge for repair the whole life.                                  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
