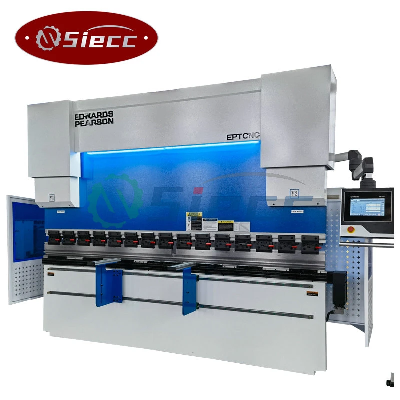

Wc67y-125X3200 Hydraulic Bending Folding Machine/Press Brake

The Main Components for CNC SYSTEM 1. CNC SYSTEM: CYBELEC DNC60 OR DNC 600 SYSTEM 2. Servo Valve: Germany Reroxth 3. Pressure Control Valve Group: Germany Reroxth 4. Pump: Germany Eckerler 5. Ball Screw AND Line GUIDE: Taiwan HIWIN 6. Main Motor: Germany Simens 7. Grating Ruler: Italy RSF 8. Oil Connection and Seal: USA PARKER 9. Servo motor: CUNISICO 10. Control Axis: Y1, Y2 AND X AXIS 11. Synchronization: Electronic-Hydraulic Synchronization 12. Stroke Buttom: Germany Schneirder Main Character and Function All the components of the machine are designed under the instruction of the Computer aided design and software of CAD/CAE/CAM to fully guarantee the intensity and rigidity of all the components. The whole body under total wielded, thickness and reliable in machine body with high-rigidity and good in shock absorption reduction. The machine structure are composed by body frame, working table, slide block, main cylinder and backgauge. The advantage design and produce style can ensure the machine usage and high precision. The main produce procedure as below(all process under strictly inspection) Plate stock-------physical and chemical inspection-------Plate Pre-treatment (Rust-Cleaning) ------- CNC flame Cutting-------Cutting the welded joint-------Group Welding-------Gas Shielded Welding-------Ageing treatment-------Milling Planer working-------The Assembly of finished products The machine body, Slide Block, Working table and other main components are under one time clamping of large landing boring and milling machine to ensure several geometric accuracy of the main machine. The machine is greatly enhanced in anti-torque and electronic load resistance. Machine can normally work in full loaded situation. Working table, Upright Column, Crossbeam and RAM are good and high in design rigidity. Little deformation between the working table and RAM when work to guarantee good straightness and uniformity in angle. Machine's main components under guaranteed quality or trustable company The motor and electronic system elements are all composed from Siemens or Schneider Dies can be designed under clients' requirement. The machine will be equipped standard molds the drawing will be sent. And the non-standard molds can be designed if the clients can provide the dies drawing or the workingpieces, we will design. The upper mold can be done in section. We use Germany Schneider Stroke Button with high good durable stability, the stroke will be worked stable or be suspending without any sudden down movement which is serious dangerous. Oil pump can be used from China chengjie enterprise who is used in China's Aircraft industry. Or we can use Germany ECKERLER enterprises. The seal will be from USA Parker or Japan Valqua company. The hydraulic system and valve will be from USA OMG or Germany BOSCH company. The security protection equipment: The design always care about the worker security when operation both working or checking stationary. We equipped both side magnetic door to avoid any penetration inside. At the back, we will provide 3 Section close door with the middle door moveable and the power will be off when the door open, power on when the door close. The light curtain is useful components to aware any finger in dangerous position. Nominal force of the ram2000KNTable Length3200MMUpright column distance2600MMThroat depth320MMMax.stroke of the ramMax.open200MMMax.open height between the table and the ram470MMMax.stroke of block160MMSpeed for the ram strokeEmpty80MM/SWorking7MM/SReturn48MM/SMain motor power15KWDimension3400X1700X2650MMWeight11TON  CompanyShining Industrial Enterprise(China) Co., LtdNantong Brillante Industrial Enterprise Co., LtdEdward Pearson Machinery (Shanghai) Co., LtdNANTONG LIANZHONG MACHINE CO., LTDJIANGSU GOLD-PARTNER ENTERPRISE CO.,LTDBrandSIECC/EDWARDS PEARSON/HECTMACWebsitesiecctech.en.made-in-china.comsiecctech.en.made-in-china.comsiecctech.en.made-in-china.comsiecctech.en.made-in-china.comVideoRolling          https://youtu.be/Fi3tFKSoLlYPress brake          https://youtu.be/pyIChKoh1eAGrooving      https://youtu.be/pFZh_n3vrssIronworker   https://youtu.be/0O9OeCmu9QIPlasma cutting  https://youtu.be/71BKxv6tVB8Facebookhttps://siecctech.en.made-in-china.com  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
