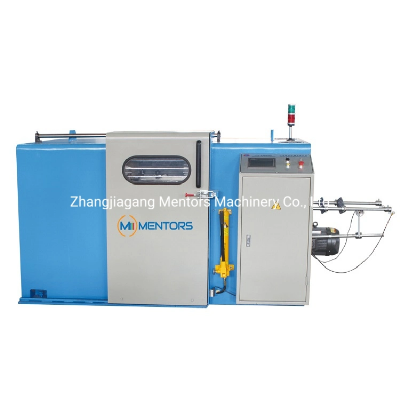

500 Bare Copper Wire Buncher High Speed Double Twist Bunching Machine

ApplicationThis machine is supplied for the twisting of bare copper wires, tin-coated wires, and enameled wires with more than 7 strands.Finished wire can be used for making Electronic cables, earphone cables, telephone cables, power cables, audio cables, video cables, Automotive Wires network cables, etc.Feature  1. Copper Wire Dia: 0.1-0.45 mm2. Twisting Pitch: 6.30-50.4 mm3. Max Main Shaft Speed: 3000 r/min4. Thin Oil Lubrication and Circulation CoolingMain Specification   ItemDataMachine typeSY-500PTwistSupply to the twisting of bare copper wires, tin-coated wires, and enameled wires with more than 7 strands.Max. speed3000r/minInlet individual dia.0.10-0.45mmStandard lay length6.3-50.4mmStanding section area0.05~2.5mm2Twisting directionright or leftSpool dimensionMAX 500mmBobbin loading, unloading typeManual hydraulic pressureTension controlmagnetic powder clutchTraversingTransverse and distance can be adjusted by a plain shaftMain motor5.5kw + frequency converter 380v three phase four stageBrakeMagnetic brake, the machine will stop automatically if there is any wire breakagePay-off standOptional and exclusive  Machine Characteristic  1) More stability, high production efficiency, low noise, and ease of operation.2) Spring bow can prolong the life.3) Take-up tension is controlled by magnetic powder clutch or mechanical type.4) If the wire breaks, the machine can stop automatically.Delivery PhotoCompany ProfileMentors is a professional manufacturer and exporter of wire drawing machines & cable making machines in the wire and cable field since 2008, It is successful in making all kinds of high-speed wire drawing machines, annealing and tinning machines, double twist bunching machines, extruders, etc.Mentors Group is able to provide a whole solution. Also our engineering team with 23 years of R&D and production experience in the field of wire drawing machines and other cable-making machines. A cost-effective, highly efficient, reliable, and easy-to-operate machine is what we deliver. The independent research and development of the Copper Wire Drawing Machines have already been supplied to world well-known companies such as Sumitomo, and Jiangxi Copper Corporation(Fortune Global 500 companies). And New Design Remote Controlled Full Automatic cable making equipment, which can load and unload bobbin without an operator, to help our customers develop faster. Our products have been exported to many countries. Such as Russia, Vietnam, India, Iran, Pakistan, Ethiopia, Brazil etc.Mentors will continue to combine the advanced technology with China's manufacturing advantage and provide wire drawing machines and cable manufacturing machines with European Standards to worldwide customers.  FAQQ1: What's the payment terms?A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.Q2: How about the after-sell service? A2: The engineer will be dispatched as needed. Q3: How much need pay for after-sell service? A3: The buyer provides the engineer's round-trip flight tickets, board and lodging, security as well and each person's daily wage. Q4: Can you support a complete project instead of a single machine?A4: Yes, besides the machine, the whole solutions for raw materials, auxiliary parts, worker training, etc. can be offered.Q5: What kind of Guarantee you can offer?A5: 12 months since shipping date and charge for repair the whole life.  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
