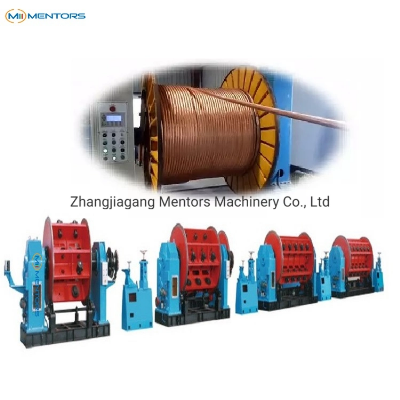

630 Copper Aluminum Wire and Cable Rigid Frame Stranding Machine

ApplicationThis machine is used for stranding wire, especially for power cables.FeatureIt's Suitable for stranding long lengths and big sections of bare copper, aluminum, aluminum alloy, aluminum cable steel reinforcing wires(ACSR) to produce power cables, sector-shaped conductors; and round compacted cross-linking press cables.Main Specification   MachineSY-KJ630  Standing single wire Dia. (mm)CopperΦ1.50-Φ4.50 Al alloyΦ1.80-Φ5.00 AluminumΦ1.80-Φ5.00Max. cage rotate speed(RMP)6 Bobbins192 12 Bobbins173 18 Bobbins124 24 Bobbins117 30 Bobbins90Pay-off reel in cagePND630Central pay-off reelPND630-PND2000Take-up reelPND1600-PND3150Control typePLC+touch screenMachine Characteristic1) Whole welding instead of separate welding.2) One wheel is straight and the other is inclined position arranged to ensure good care of the material to be pulled out. The maximum pulling force is 15T. Each reel is equipped with an advanced broken wire detector, allowing it to stop the machine automatically in case of broken wire.3)Reels are arranged quartering around the cages. The centralized side loading system can increase efficiency much more, the equipment has high-powered, high speed. Detailed Photos Company ProfileMentors is a professional manufacturer and exporter of wire drawing machines & cable making machines in the wire and cable field since 2008, It is successful in making all kinds of high-speed wire drawing machines, annealing and tinning machines, double twist bunching machines, extruders, etc.Mentors Group is able to provide a whole solution. Also our engineering team with 23 years of R&D and production experience in the field of wire drawing machines and other cable-making machines. A cost-effective, highly efficient, reliable, and easy-to-operate machine is what we deliver. The independent research and development of the Copper Wire Drawing Machines have already been supplied to world well-known companies such as Sumitomo, and Jiangxi Copper Corporation(Fortune Global 500 companies). And New Design Remote Controlled Full Automatic cable making equipment, which can load and unload bobbin without an operator, to help our customers develop faster. Our products have been exported to many countries. Such as Russia, Vietnam, India, Iran, Pakistan, Ethiopia, Brazil etc.Mentors will continue to combine the advanced technology with China's manufacturing advantage and provide wire drawing machines and cable manufacturing machines with European Standards to worldwide customers. FAQQ1: What's the payment terms?A1: Standard type is 30% T/T as deposit, 70% T/T before shipping.Q2: How about the after-sell service? A2: The engineer will be dispatched as needed. Q3: How much need pay for after-sell service? A3: The buyer provides the engineer's round-trip flight tickets, board and lodging, security as well and each person's daily wage. Q4: Can you support a complete project instead of a single machine?A4: Yes, besides the machine, the whole solutions for raw materials, auxiliary parts, worker training, etc. can be offered.Q5: What kind of Guarantee you can offer?A5: 12 months since shipping date and charge for repair the whole life.    /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
