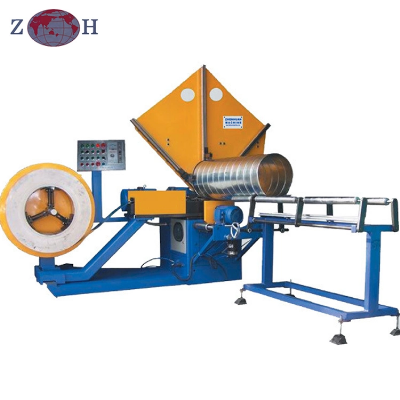

PLC Conrtol Spiral Tubeformer for Ventilation

Spiral tubeformer is for producing spiral round ducts, tubes, pipes for HVAC system.   ZHTF-1500I spiral tubeformer adopts special mould variable for different tube diameters, flexible.   ZHTF-1500I spiral tubeformeradopts high speed synchrony flying cutting system, high working efficiency.   ZHTF-1500I spiral tubeformer is of light and small, suitable for site work. Advantages of ZHTF-1500I spiral tubeformer 1) Special mould for various tube diameters, very easy to change and adjust, no need crane or too much manpower 2) Large diameter range 3) High speed synchro flying cutting system 4) PLC control, convenient operation 5) Light and small, suitable for site work 6) Perfect swage, without leakage Main technical data of ZHTF-1500I spiral tubeformer  No.ItemData1Duct diameter range85-1500mm2Duct lengthmax. 8000mm3Suitable raw materialgalvanized steel4Raw material thickness0.4-1.0mm5Linear feeding speed1-38m/min6Main driving motor power5.5kW7Cutting motor power3kW8Air pressure needed0.8MPa9Control methodPLC control, PLC, inverter from Japan10Outline3500 x 2800 x 2580mm11Weight2500kg  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
