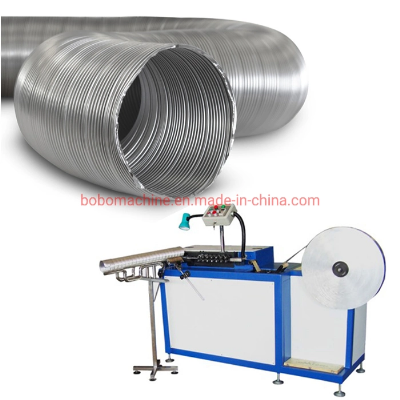

Spiral Flexible Aluminum Duct Making Machine (PAD-300 /ZHLF-300B)

Aluminum flexible conduit making machine Aluminum flexible duct foming machine Flexible aluminum duct forming machine Flexible ventilation duct machine Spiral flexible duct making machine This machine is specially for producing aluminum flexible ducts with pure aluminum foil without steel wire reinforcement for various purpose. Our advantage is our omnipotent mould which will save investment cost. Spiral Flexible Aluminum Duct Making Machine (PAD-300 /ZHLF-300B)This machine is specially for producing aluminum flexible ducts with pure aluminum foil without steel wire reinforcement for various purpose. Our advantage is our omnipotent mould which will save investment cost. Main technical data Diameter: 80---500mm Length: 100---4000mm Material Thickness: 0.06---0.15mm(Aluminum foil strip) Raw material width: 60mm Compression ratio: 1: 3.5( means make the 3.5m tube to 1m) Surface corrugation: 4-7 corrugation (as per your requirements) Lock way: Double-decked tabby locking Feeding speed: 0---46m/min Electricity control: PLC Refrigeration system: Emulsified liquid cooling Electrical power: 380V, 3pH, 50Hz Main motor power: 1.5kw Power of Pump: 0.04kw Power of cutting: 0.12kw Diameter of raw material coil: 70-500mm /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
