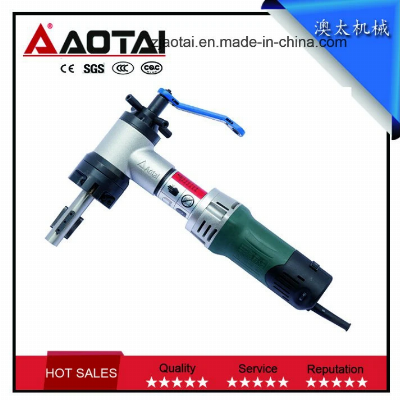

Electric Bevelling Machine (ISY-28TN)

T-PIPE BEVELING MACHINEThe ID mounted T-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts "T" shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. Range for pipe ID 12.5-330mmOVERVIEW The ID mounted T-PIPE BEVELING MACHINE can face and bevel all type of pipe ends, pressure vessel and flanges. The machine adopts "T" shape structure design to realize the minimal radial working space. With the light weight, it is portable and can be used on-site working situation. The machine is applicable to end face machining of various grades of metal pipes, such as carbon steel, stainless steel and alloy steel. It is widely applied in heavy type pipe lines of Petroleum, chemical natural gas, power supply construction, boiler and nuclear power.FEATURES 1,Cold cutting, without influence the material of the pipe 2,ID mounted, adopt T structure3,Varity of beveling shape: U, Single-V, double-V,J beveling 4,It can also be used for repairing inner wall and deep hole processing.5,Working range:12.5-330mm6,Driven motor: Pneumatic and Electric7,Customized machine is acceptableCAPABILTY1,Pipe end beveling2,Inside beveling3,Pipe facingBEVELING SHAPE MODEL AND SPECIFICATIONModelWorking rangeID mmthicknessmmpowerkwRotating speedrpmElectricPneumaticISY-80TTCM-80T   Ф28-76≤150.9053ISY-90TTCM-90T   Ф36-90≤151.4350ISY-28TN-1TCM-28TN-1   Ф12.5-15≤31.4370ISY-28TN-2TCM-28TN-2   Ф15-20≤51.4370ISY-28TN-3TCM-28TN-3   Ф20-28≤61.4370ISY-80TNTCM-80TN   Ф26-79≤151.4370SDC-120TTCM-120T   Ф45-105≤201.4334SDC-150TNTCM-150TN   Ф60-170≤201.4334SDC-350TTCM-350T   Ф150-330≤201.4314Above parameters just for reference only, not acceptance criteriaPOWER SUPPLIESElectric:Convenient power supply Stable PerformancePopular choice Electric requirement:220-230V 1PH 50/60HZPower:0.74KW,0.9KW,1.43KW Pneumatic:  Explosion Proof Stable Performance Easy to maintenance Air requirement:1500-2000L/min @0.63-0.8Mpa Power:1.1HP,2HP  TOOLINGIntegrated toolcan be reused by grindingMaterial:M42M35Standard supplyInsert toolInsert same, different angle holderHolderMaterial: HSS ;    Insert material: Cermet or CarbideOptional   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
