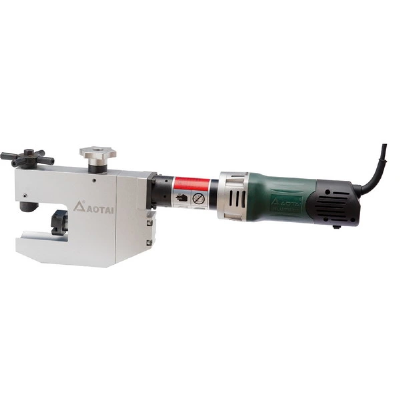

ISC TSC C Narrow Design Electric Pipe Bevelling Machine

ISC TSC C Narrow Design Pipe Beveling MachineOverviewC-narrow design pipe beveing machine was designed for the end beveling of narrow working site and small diameter pipe. OD mounted on the pipe, one clamping block just fit one size pipe, secured clamping, easy to operate. It was widely used in water wall, fins, boiler economizer, superheater, reheater, power plants and other industries, the single pipe and exhaust pipe facing and beveling.FeaturesCold cutting, without influence the material of the pipeOD mounted, self centering, secured clamping, easy to operateAluminum body is light, suitable for working aloft.5 models, working range: 8-108mmOptional special tool bit use for pipe inner threadDriven motor: Pneumatic and ElectricCapabilityPipe bevelingInside bevelingPipe facingBeveling ShapeThe key words of this product: Pipe beveling machine Tube beveling machineModel and SpecificationModelRangeThicknessRotatingTool StrokePipe LengthElectricPneumaticOD mmmmrpmmmmmISC-53TSC-53Ф8~53≤80-5811≥60ISC-63TSC-63Ф20~63≤120-5511≥70ISC-73TSC-73Ф25~73≤120-5411≥70ISC-83TSC-83Ф30~83≤120-4311≥70ISC-108TSC-108Ф50~108≤120-4211≥70Above parameters just for reference only, not acceptance criteria.Clamping BlockModel1234567891011121314151617ISC-53Φ8Φ10Φ12Φ14Φ16Φ18Φ20Φ22Φ25Φ28Φ32Φ38Φ42Φ44.5Φ48Φ51Φ53ISC-63Φ20Φ22Φ25.4Φ28Φ32Φ38Φ42Φ44.5Φ48Φ51Φ54Φ57Φ60Φ63   ISC-73Φ25.4Φ28Φ32Φ38Φ42Φ44.5Φ48Φ51Φ57Φ60Φ63Φ68Φ70Φ73   ISC-83Φ25.4Φ28Φ32Φ38Φ42Φ44.5Φ48Φ51Φ57Φ60Φ63Φ68Φ70Φ73Φ76Φ83 ISC-108Φ50Φ54Φ57Φ60Φ63Φ68Φ70Φ73Φ76Φ83Φ89Φ95Φ108    One clamping block just fit one size pipeStandard with four diameter clamping block, more specifications please inquirePower SuppliesElectric:Convenient power supplyStable PerformancePopular choiceElectric requirement: 220-230V 1PH 50/60HZPower: 1.43KWPneumatic:Explosion ProofStable PerformanceEasy to maintenanceAir requirement: 1500-2000L/min @0.63-0.8MpaPower: 2HPToolingIntegrated ToolCan be reused by grindingMaterial: M42 & M35Standard supplyInsert ToolInsert same, different angle holderHolder Material: HSSInsert material: Cermet or Carbide Optional  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
