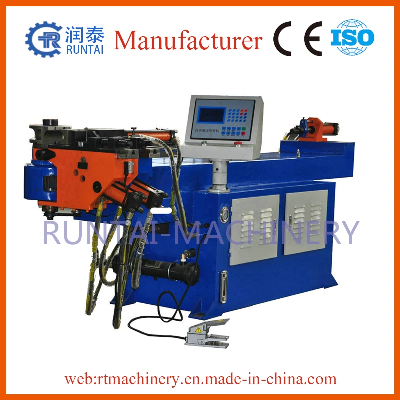

Full-automatic bender RT-50CNC1. Bend-arm (C-axis) by servo motor 2. Clamp die by hydraulic 3. Pressure die by hydraulic 4. Carriage (Y-axis) by servo motor 5. With rear booster driven by servo motor 6. Collet (B-axis): rotation by servo motor, grip by hydraulic 7. Tooling shift : motion up-down by hydraulic, left-right by hydraulic. 8. Automatic mandrel lubrication 9. Anticipated mandrel retraction unit 10. Standing pedestal, serves emergency stop and remote control 11. Industrial PC assorted with touch screen display, capable of 3D bending simulation, 3D preview and collision prevention Specification: ModelSTB-50CNC-2A/3ASTB-63CNC-5ABending capability OD×WT (carbon steel)Φ50.8×2.5 mmΦ63.5×3 mmBending radius35~200 mm50~280 mmBending angle0~195°0~195°Max bending length with mandrel2600mm3000mmBending speedMax. 90°/secMax. 70°/secBending accuracy±0.1° (2A) ±0.05° (3A)±0.05°Feeding speed20~600 mm/sec20~500mm/secFeeding accuracy±0.1 mm±0.1 mmRotating speed240°/sec200°/secRotating accuracy±0.1°±0.1°Tools stack1/23 (including rolling tools)BendingHydraulic (2A) Electric Servomotor (3A)Electric ServomotorFeeding/BoosterElectric ServomotorElectric ServomotorRotatingElectric ServomotorElectric ServomotorWork head shift (horizontal)HydraulicElectric ServomotorWork head shift (vertical)HydraulicElectric ServomotorMain motor power5.5 KW7.5 KWSystem hydraulic pressure12MPa12MPaSize5000×1550×1500mm5800×1800×1700mmWeight3800 kg4600 kg SAMPLE: Features:1. Imported PLC control system with program setting and exchange function.2. With manual, semi-automatic, and automatic operate function3. With data storage, data counting function.4. Movable pedal switch with the function of automatic start, emergency stop, high safety operation.5. With air cooling system, water cooling system for users to choose. Applications:1. Exhaust pipe of car, motorcycle, airplane and other machinery.2. Tubes of air conditioning, furnitures, bikes, outside street light, sports facilities3. Pipes of kitchen and bathing facilities, pipes of medical equipments.4. Metal sheets of interior finishing, constructing facilities, outside protective equipments.......Company DetailsProfessional: 10 years into machinery.Brand: RUNTAI, China Famous BrandEngineers: 9 professional and experienced engineersCertificates: CE, ISO9001:2008Letters patents: 12 official patentsExamining report: 5 official examining reportsInnovation project: 2 innovative program awardsExported Countries: South Africa, India, Australia, Russia, UK, Mexico, Ukraine etc Trade information:FOB Ningbo, FOB Shanghai, CIF your portPayment Terms: T/T, L/C, Western Union, MoneyGramDelivery Terms: 30% deposit, 70% paid before shipment.Delivery Time: 30days after receiving depositMinimum Order Quantity: 1 setWarranty: 1 yearPackage Details: wooden boxSupply Ability: 30 Sets per MonthFree Sample: No /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
