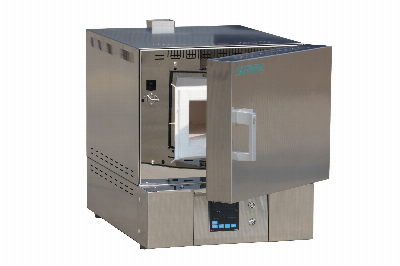

7L 1200 Degree SUS Chamber High Temperature Ceramic Muffle Furnace

Ceramic Fiber Muffle FurnaceSintering, melting, elemental analysis and physical measurement within 1200ºC of precise controlCharacteristics:1. Mirror stainless steel mouth, long-term use will not change color.2. Imported double insulated ceramic liner, stable performance3. Vacuum forming polycrystalline mullite fiber furnace, high efficiency insulation.4. In the double shell, the air sleeve is insulated, and the double guiding air passage.SX4 model also has the following characteristics:  1.Adding exhaust devices is beneficial to ashing.2.Split design, circuit detachable, easy to maintenance and repair.3.P model is program temperature control type. Program temperature controller can programme multistage program.Main Technical Parameters:  ModelSX3-2.5-12SX3-5-12SX3-8-12SX3-10-12SX3-2.5-12BSX3-5-12BSX3-8-12BSX3-10-12BSX4-2-12SX4-7-12SX4-12-12SX4-16-12SX4-2-12BSX4-7-12BSX4-12-12BSX4-16-12BSX4-2-12PSX4-7-12PSX4-12-12PSX4-16-12PSX4-2-12PBSX4-7-12PBSX4-12-12PBSX4-16-12PB Heating modeAlloy wire heating in three sides left; right; top side.FunctionTemp. Range100-1200ºCTemp. Resolution Ratio1ºCTemp. motion±1ºCTemp.Rising time to max temp≤30minStructureChamber materialCeramic fiberOuter shell cold rolling steel electrostatic spraying exterior; B model: stainless steelInsulation layerCeramic fiberHeaterAlloy heating wirePower rating1.5kW3.0kW4.5kW6.0kWExhaust holeφ30mm(chimney size 80*60mm)ControllerTemp. control modeSX3 model: domestic Xianmen Yudian single stage controller; SX4 model: Japanese conduction single stage controllerSX4-P model: Japanese Fuji color LCD 64 sections program temperature controllerTemp. setting modeTouch button settingTemp. display modeMeasuring temperature: LED upper row, setting temperature: the lower rowTimerSX3 and SX4 Series: no timing function, SX4-P: timing function, 99 hours and 59minutes(with timing waiting function)Operation function Fixed temperature operation, timing function, auto stop.Additional functionSensor deviation correction, Temperature overshoot self-tuning, Internal parameter locked, Power-off parameter memory Sensor SX3:Platinum-rhodium sensor;SX4:High precision K type sensorSafety deviceManual door security lock, over temperature sound-light alarm, door opening electrical outage, over-temperature protection,thermocouple failureSpecificationInner Chamber size(W*L*H)(mm)120*200*80 200*300*120200*300*200250*400*160Exterior size (W*L*H)(mm)450*685*600 530*785*640530*785*720600*895*700Packing size (W*L*H)(mm)580*775*730660*875*770660*875*850730*985*830Volume2L7L12L16LCurrent rating (50/60HZ)AC220V/6.6AAC220V/13.6AAC220V/20.4AAC380V/9.9ANW/GW (kg)33/3745/5062/6877/96optional typeLCD program temperature control device with USD date storage  /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
